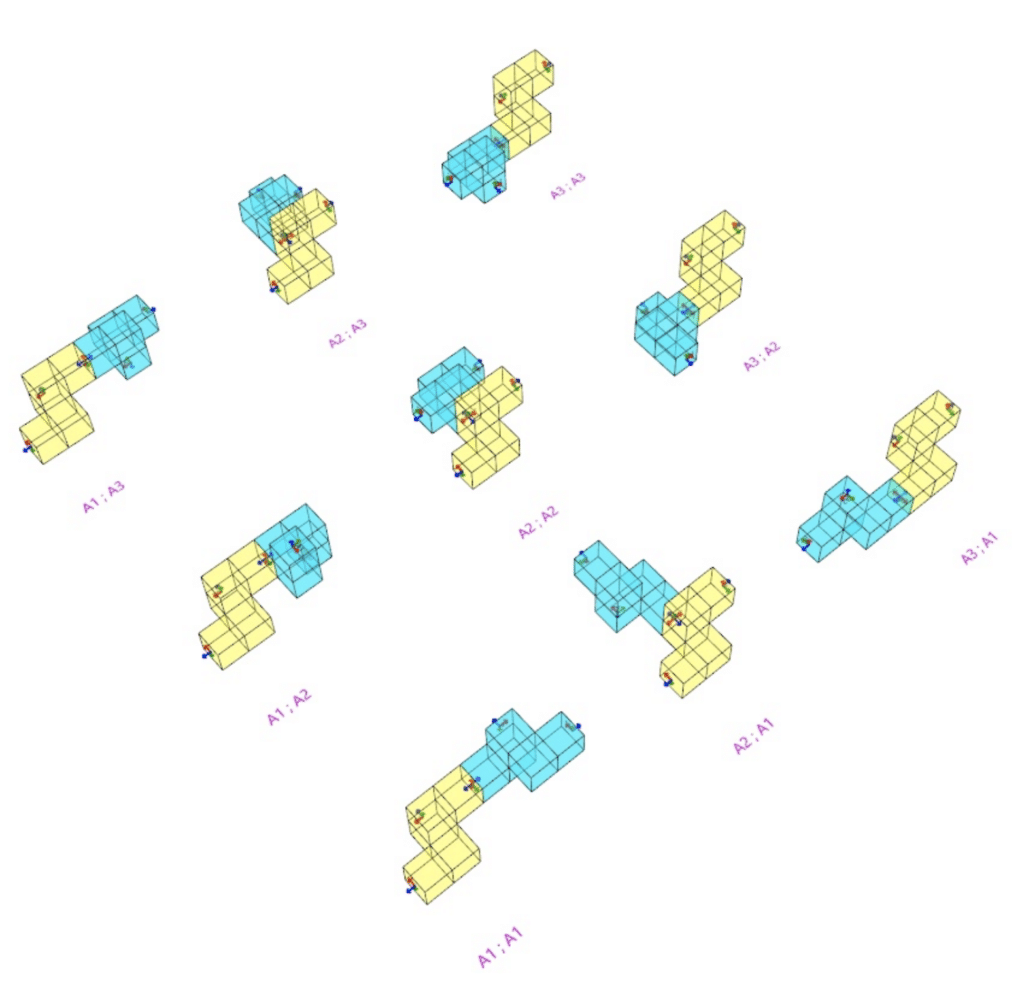

COMPONENT DESIGN

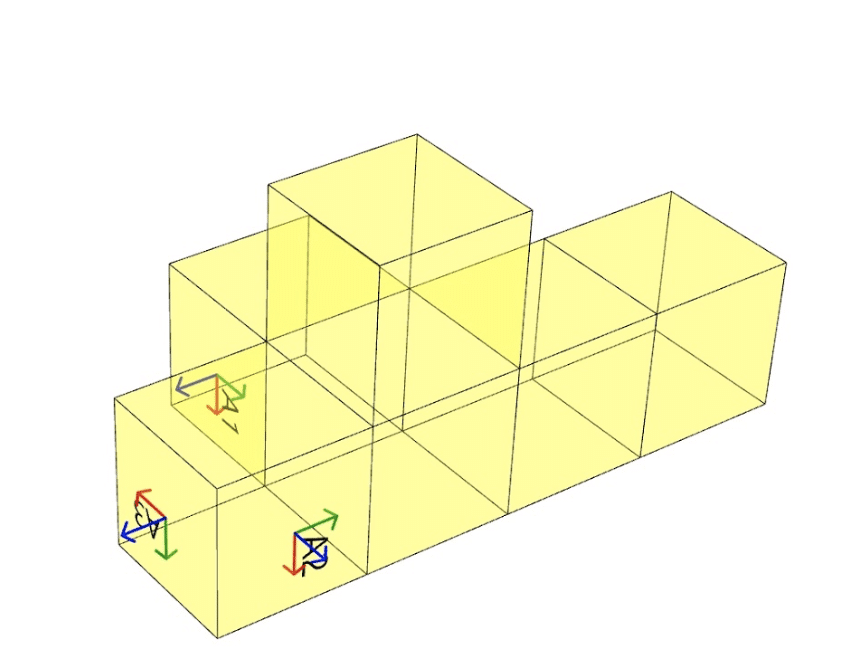

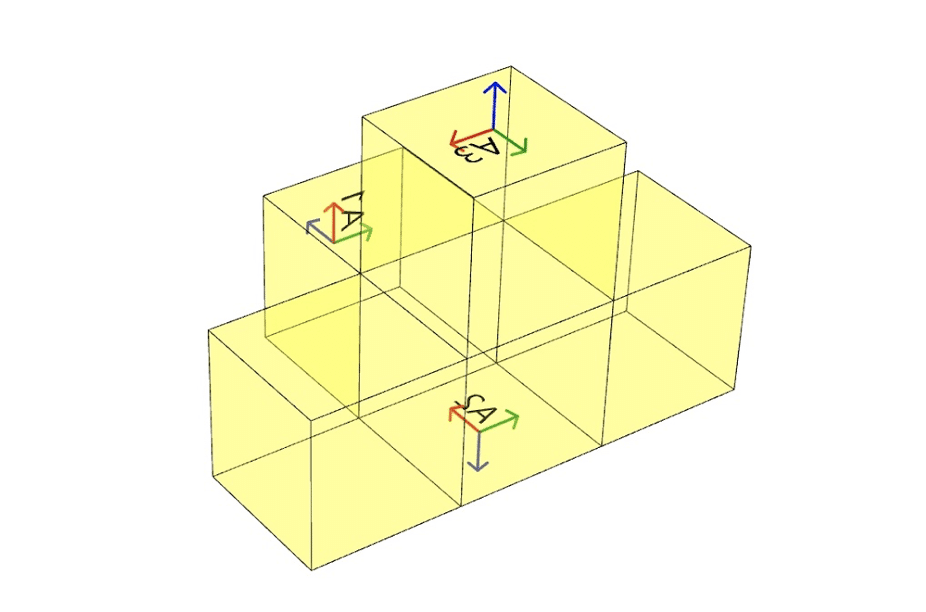

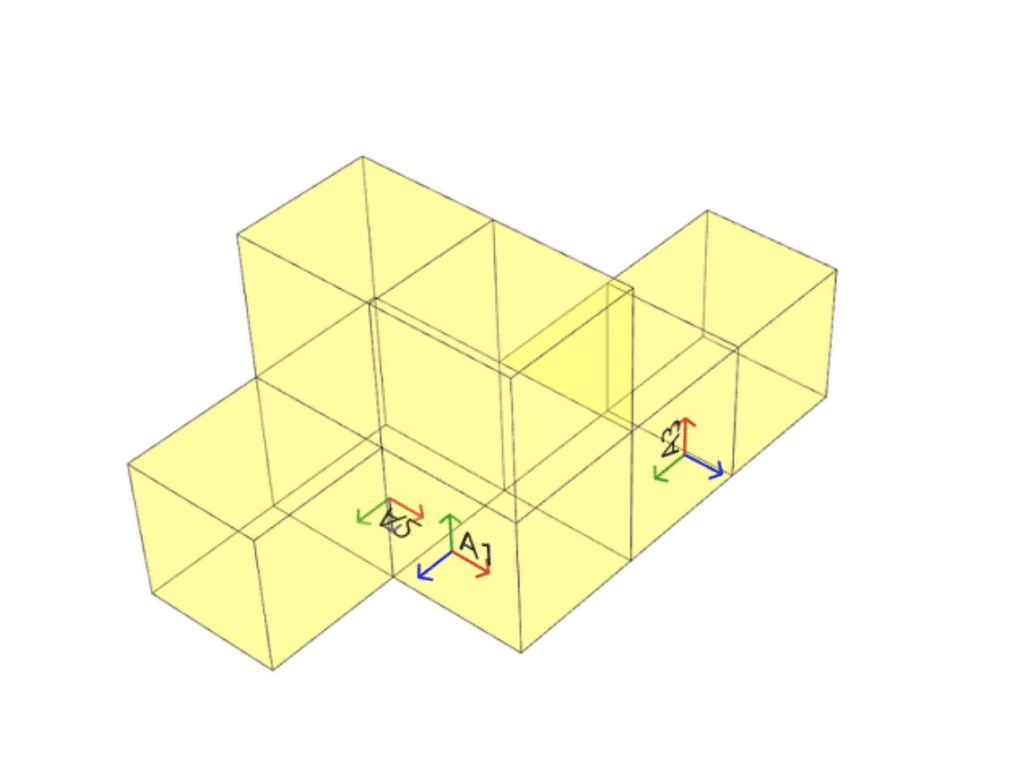

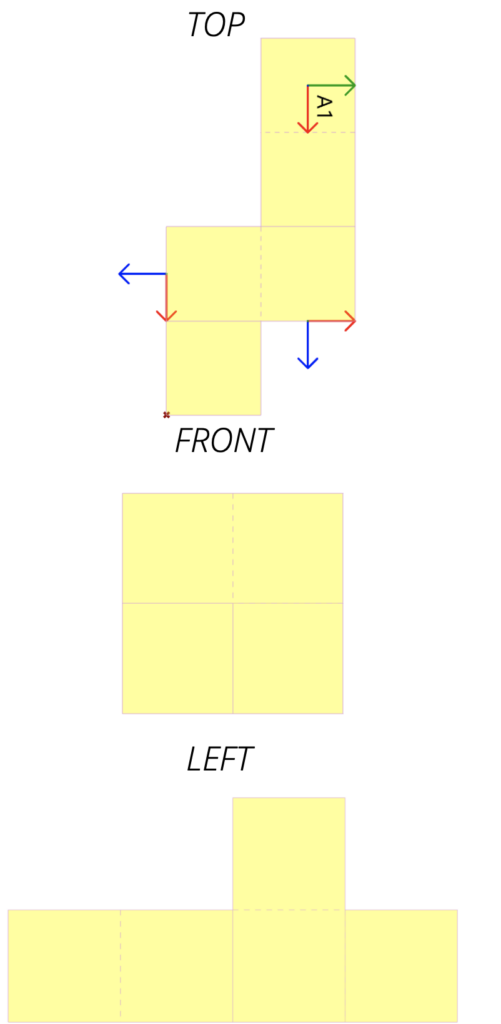

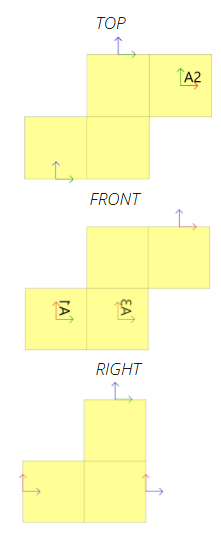

Component A

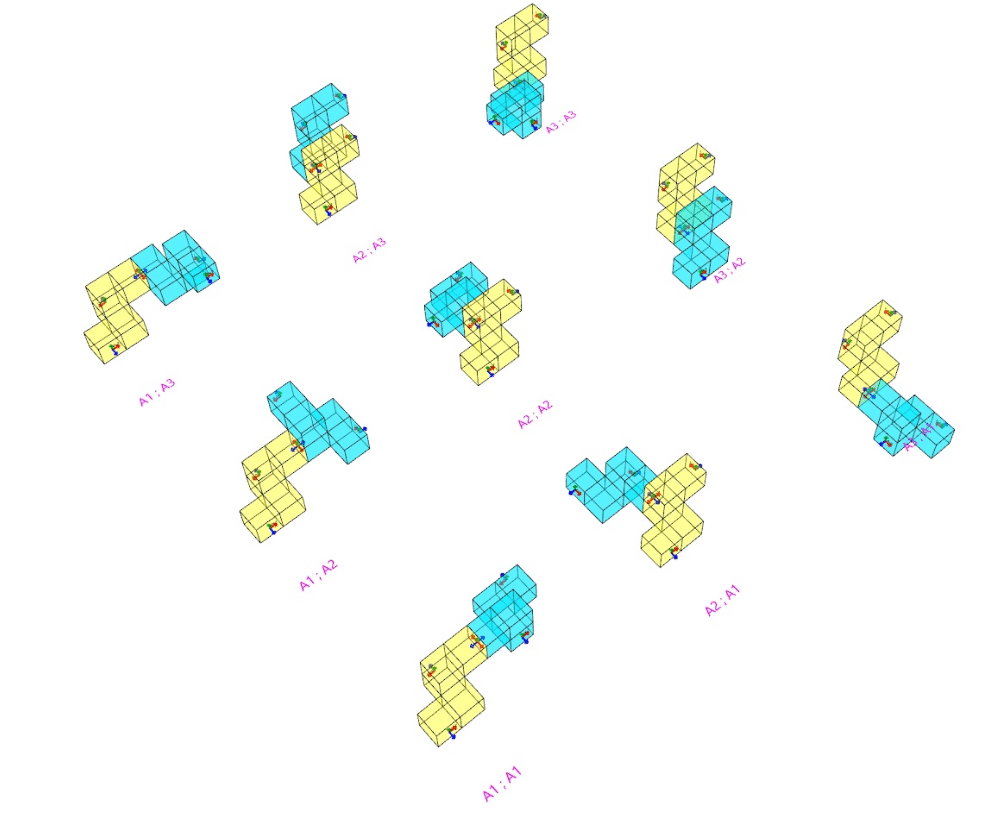

Amount of conectors 3

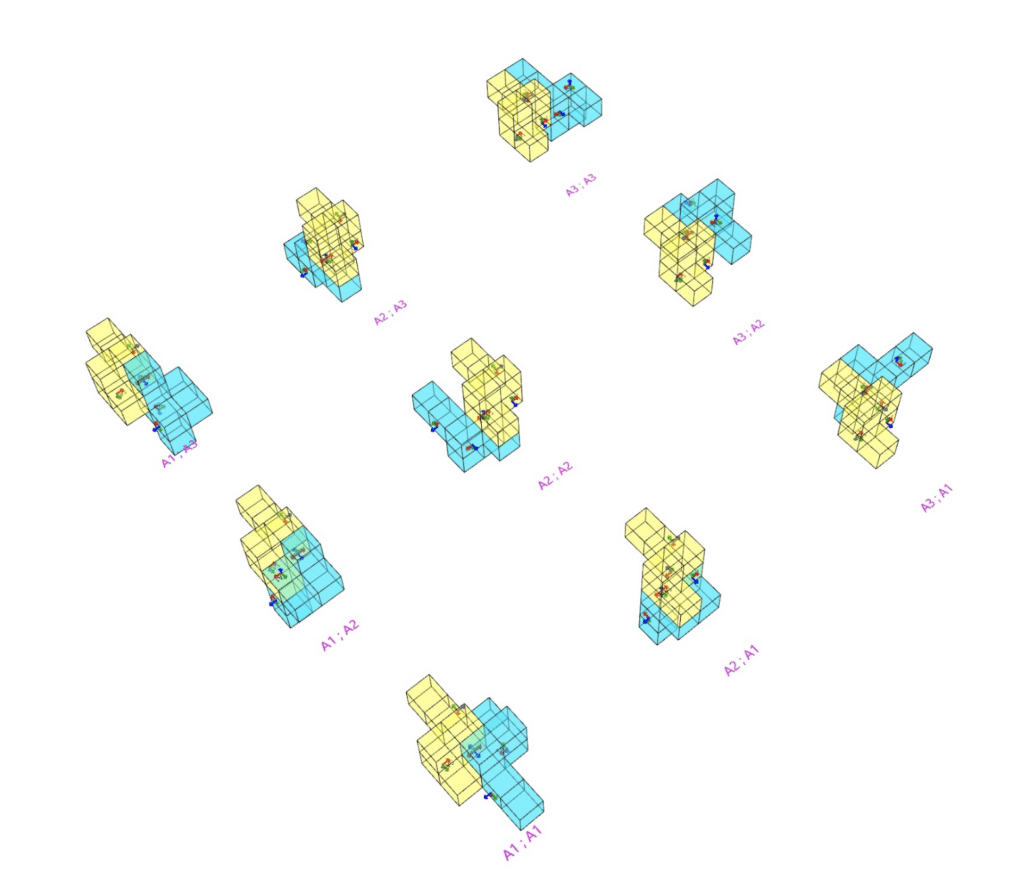

Succesful 9
Unsuccesful 0
Component B
Amount of conectors 3
Succesful 9
Unsuccesful 0
Component C
Amount of conectors 3
Succesful 9
Unsuccesful 0
Component D
Amount of conectors 3
Succesful 9
Unsuccesful 0

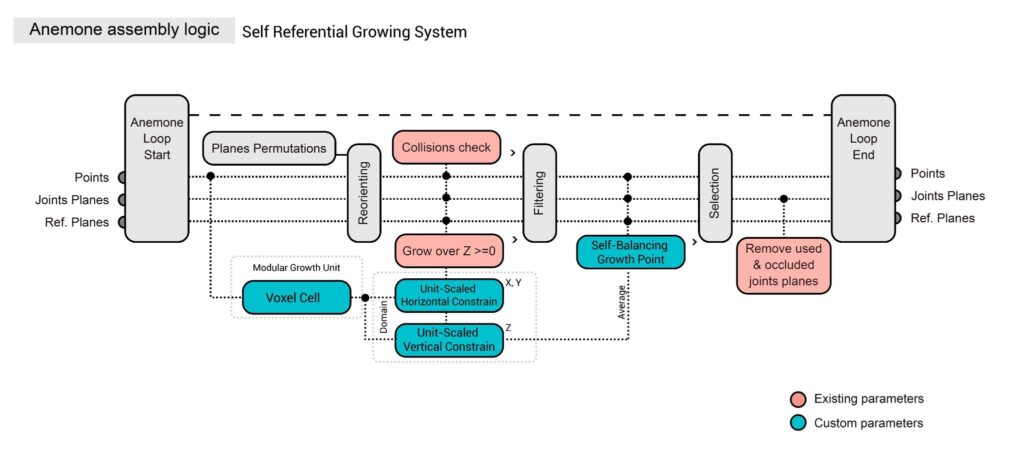

Custom Assemblage Method

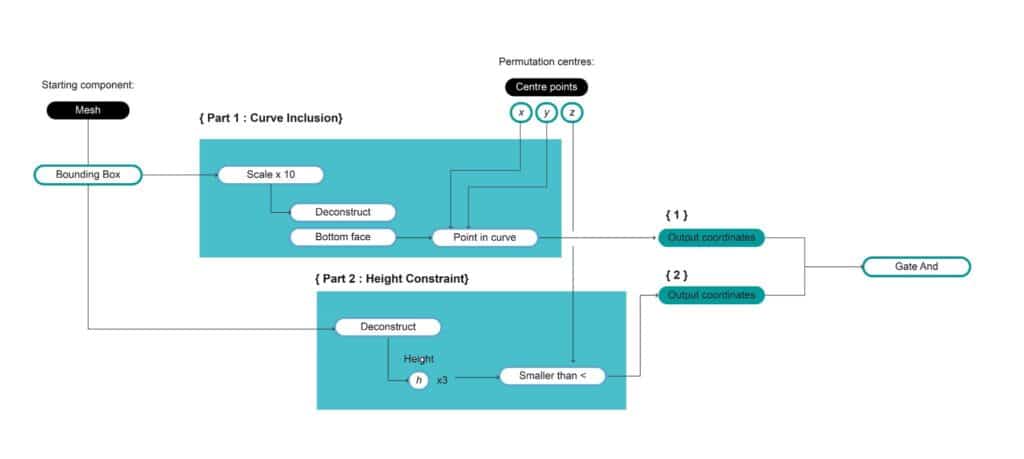

Establishing Proportional Constraints

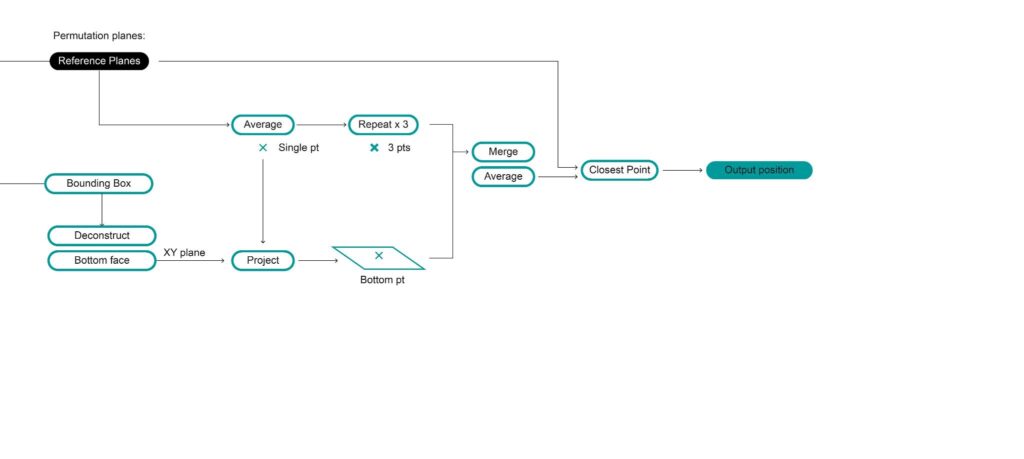

Vertical attraction
The selection method takes a carefully calibrated attractor point derived from an average between the maximum height and assembly center and, which was repeated three times to create intentional bias towards a lower region of the assembly.
Component A -200 Iterations
Component B– 200 iterations
Component C-200 iterations
Component D-200

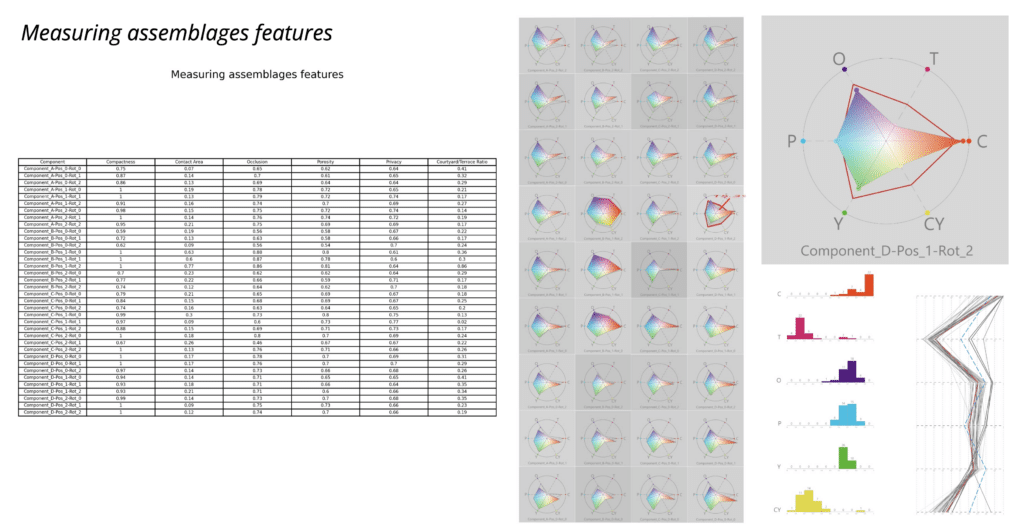

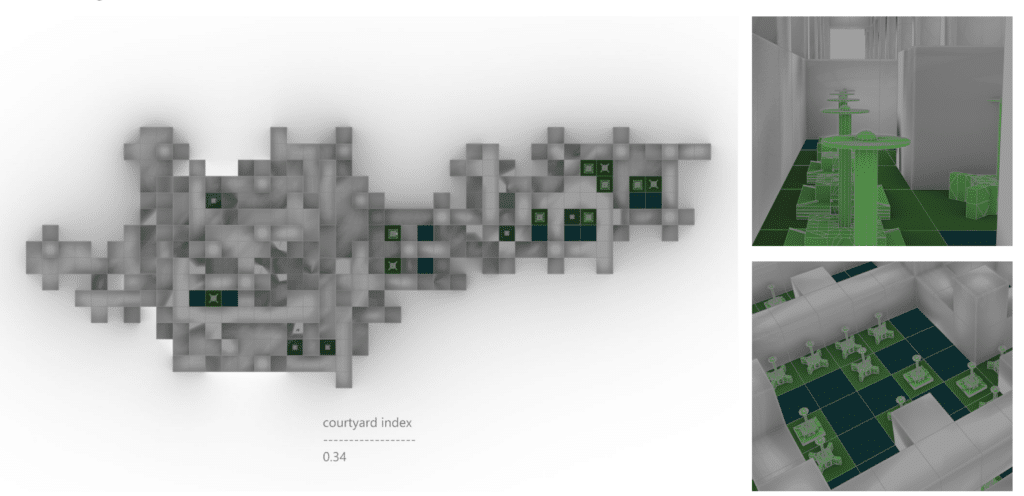

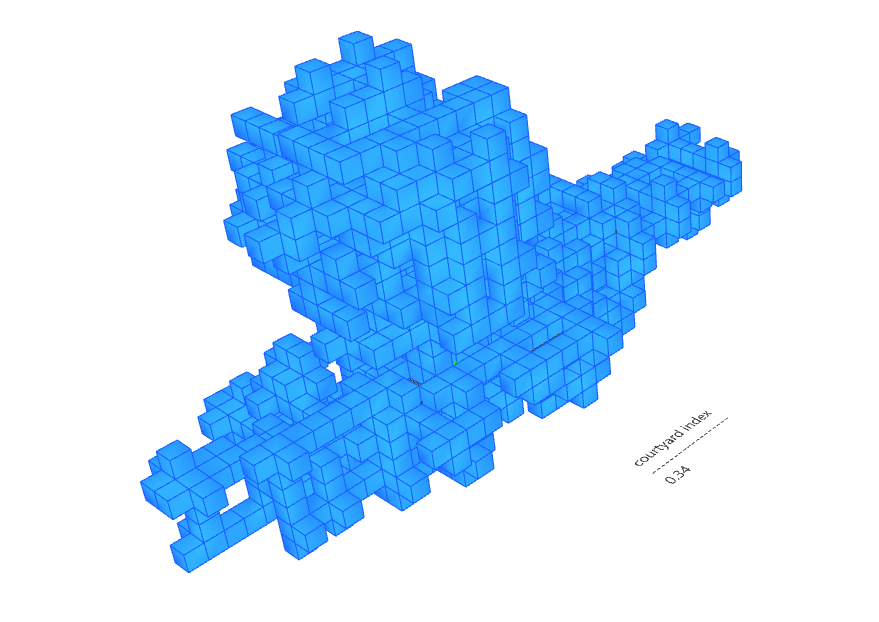

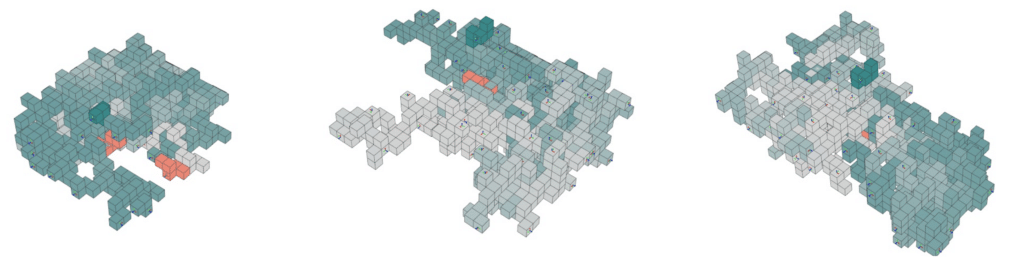

Custom evaluation criteria – Enclosed Void Opportunities
This evaluation calculates an index value based on
This evaluation produces an index measuring the proportion of enclosed void space relative to the total assemblage mass. These voids are classified by horizontal enclosure and vertical openness, identifying potential for typologies such as courtyards, terraces, and internal open spaces that support social, spatial, and environmental functions.
Component D-Position_0-Rotation_0
Architectural Elements
Custom Method – Assemblages D_POS.01_ROT.02
Assemblages B_POS.01_ROT.01
Custom Method – Assemblages B_POS.01_ROT.01
