With a background in Design I have worked before with orthographic drawings, but the images below are my first Architectural drawings. I have always had a interest in these types of drawings so was excited to try. I also wanted to refine skills in generating 2D drawings on Rhino and get better at using illustrator.

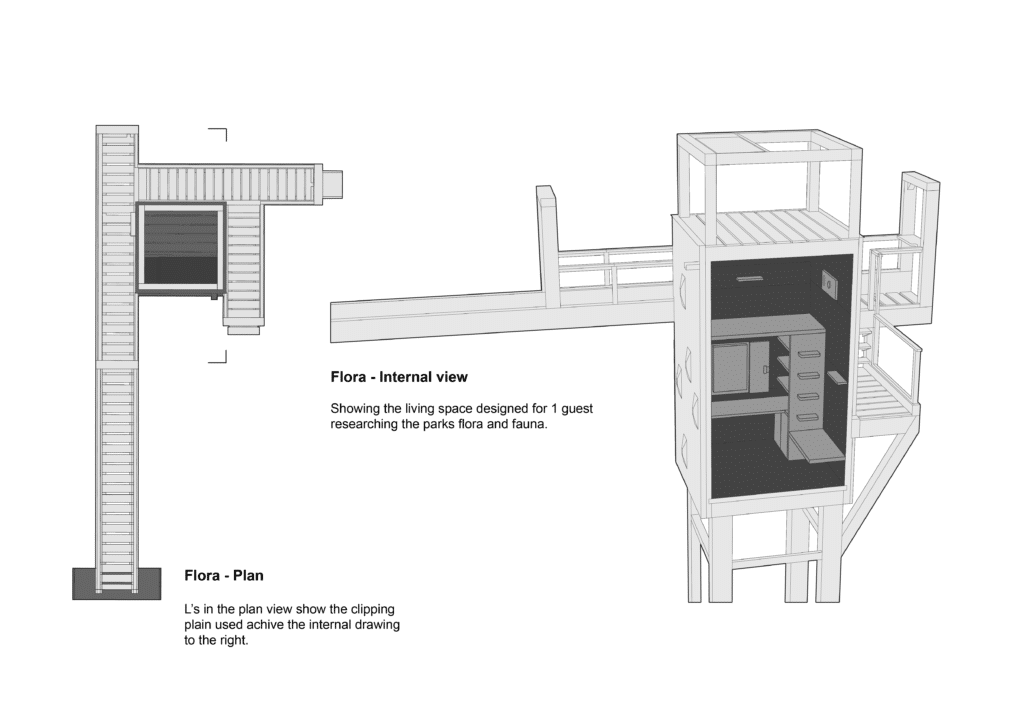

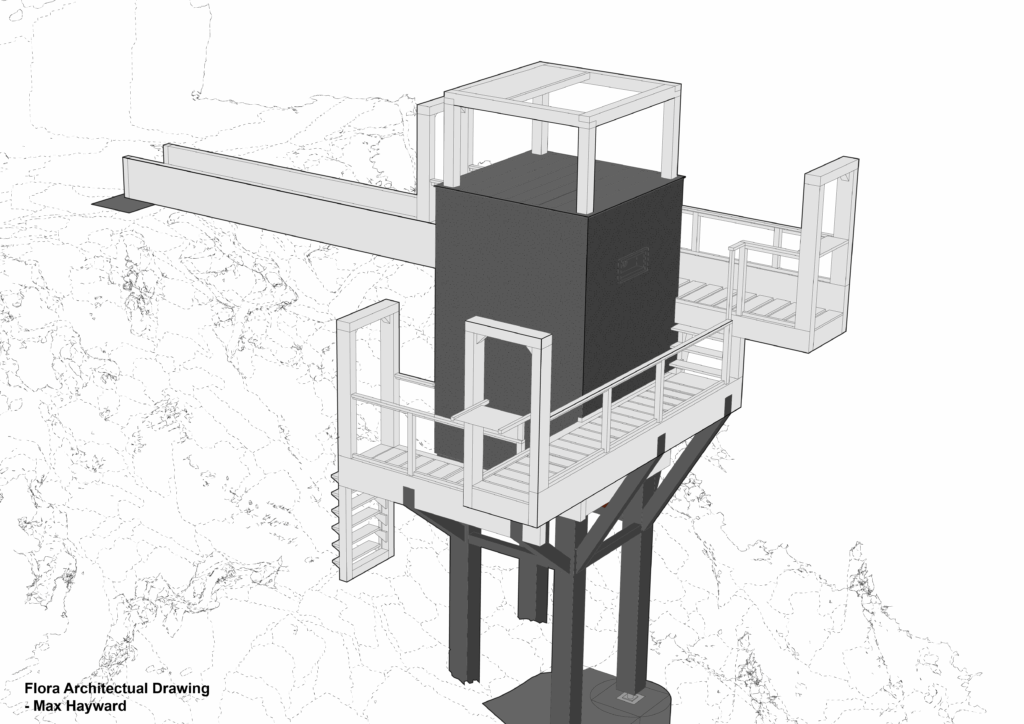

I chose the prototype Flora with the aim of making simple, clean and easy to read drawings. I wanted to show an isometric view, exploded, plan and an internal view of the living quarters.
I started with rhino to generate drawings and then moved to illustrator to colour and annotate.
