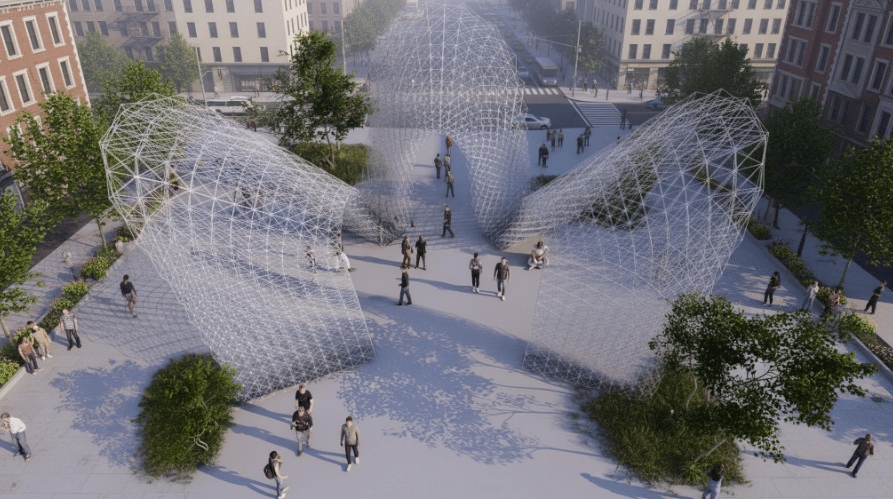

Lightweave pavilion uses a Octa thet lattice structure , where share the idea is to create a spatial experience from a repeated structural module. the structure itself becomes the envelope, and variation in height and density guides circulation.

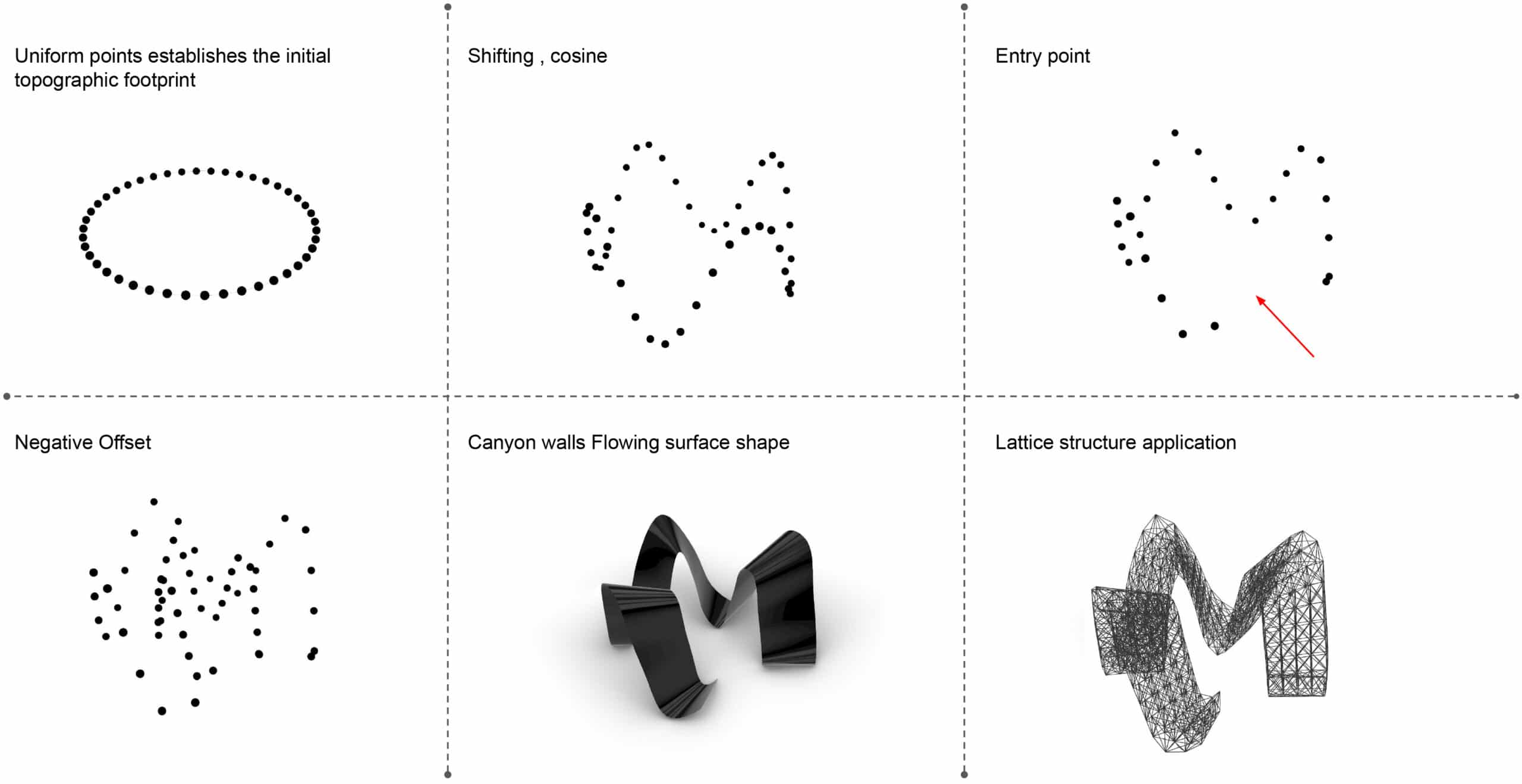

Workflow

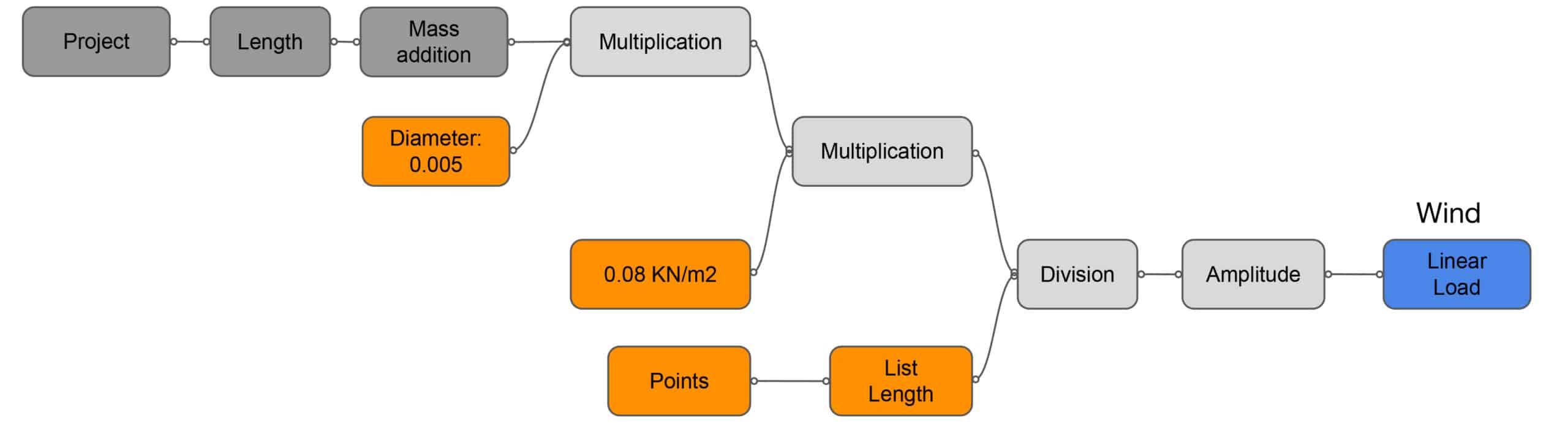

Workflow – Wind Load

Circulation Scheme

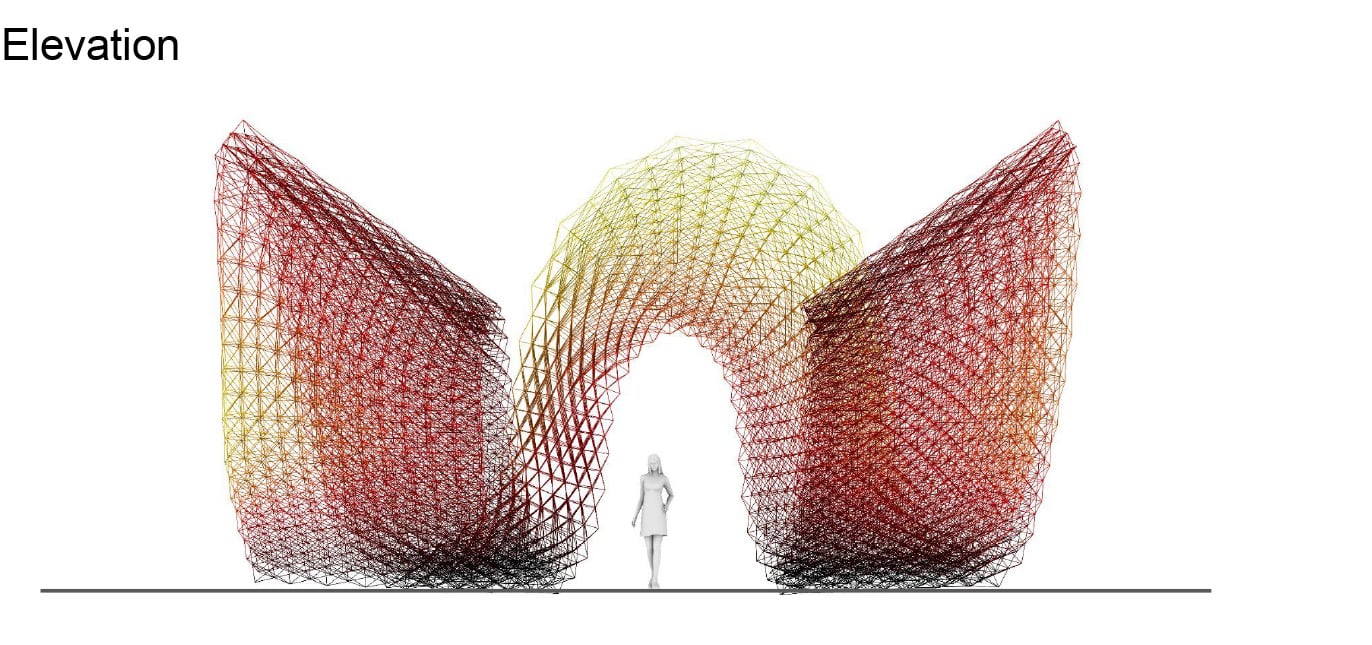

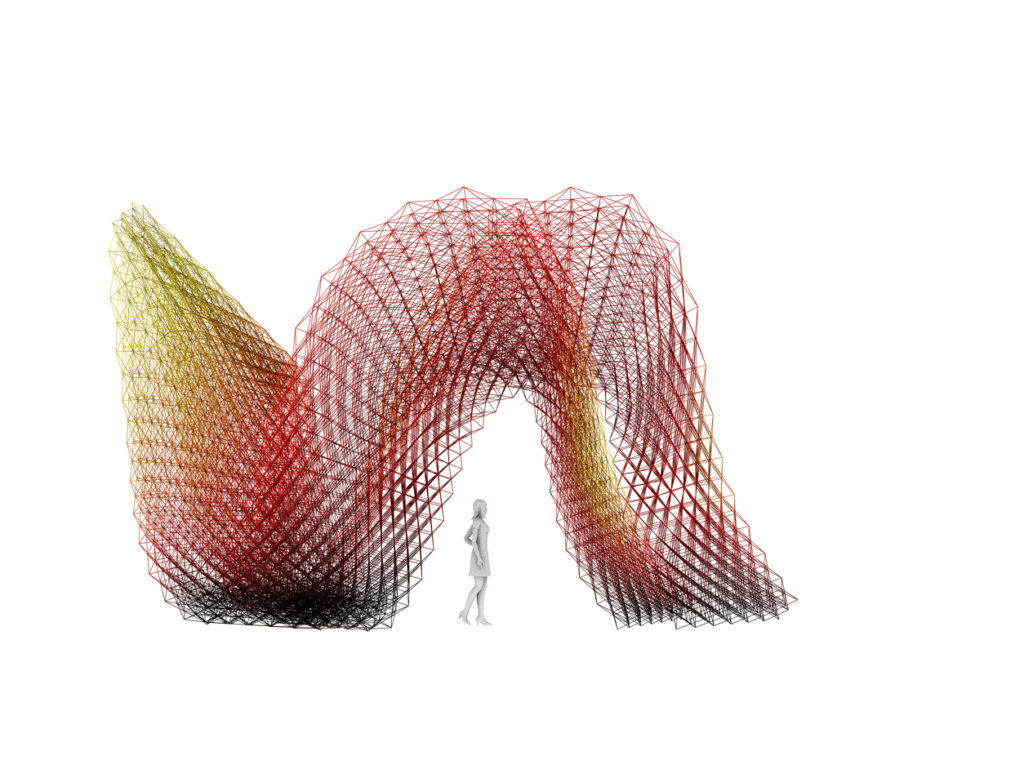

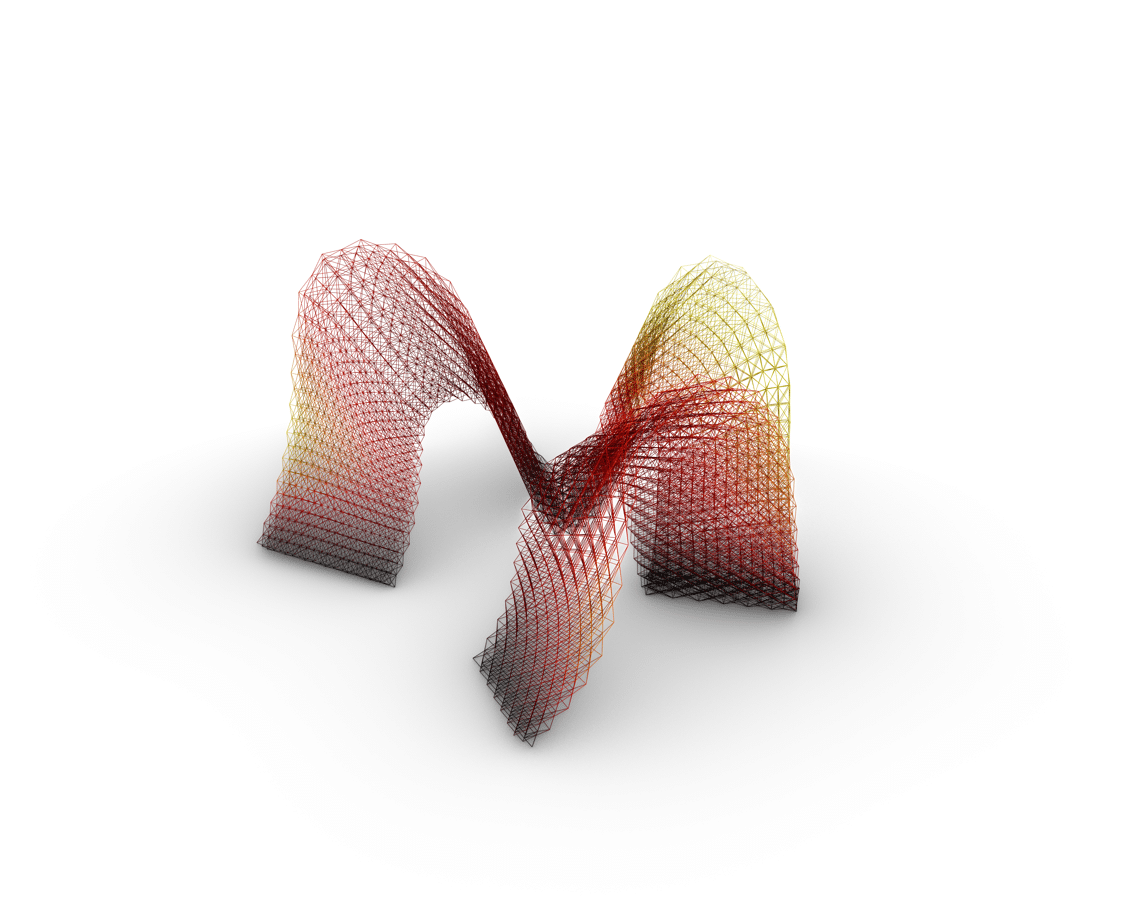

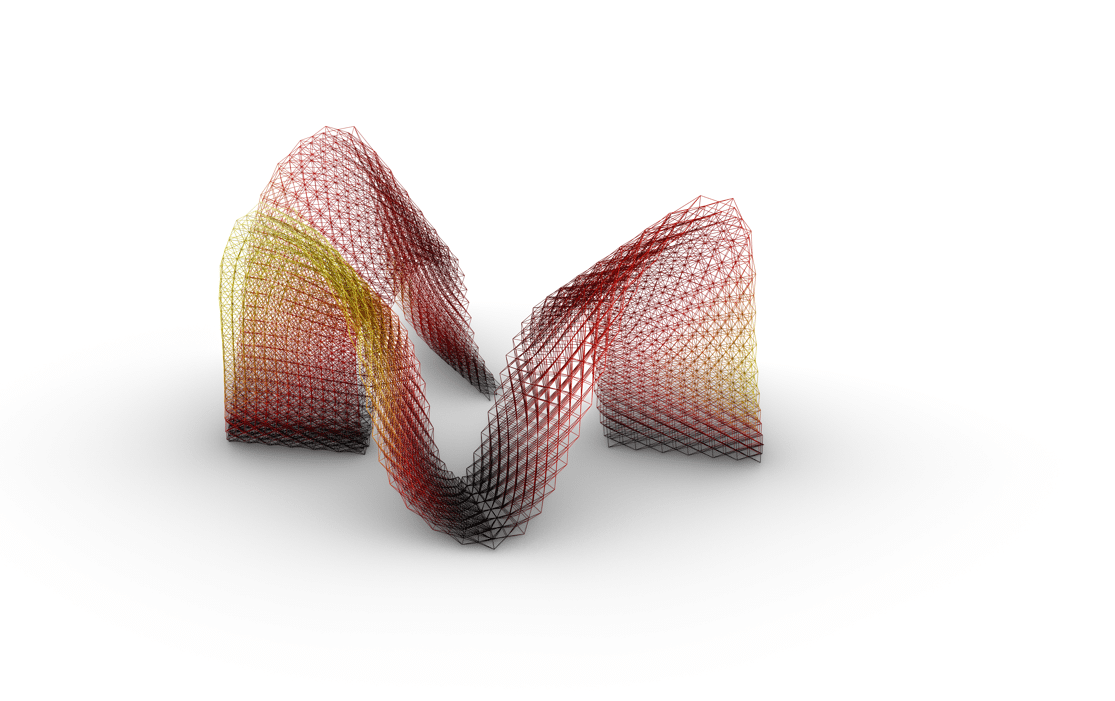

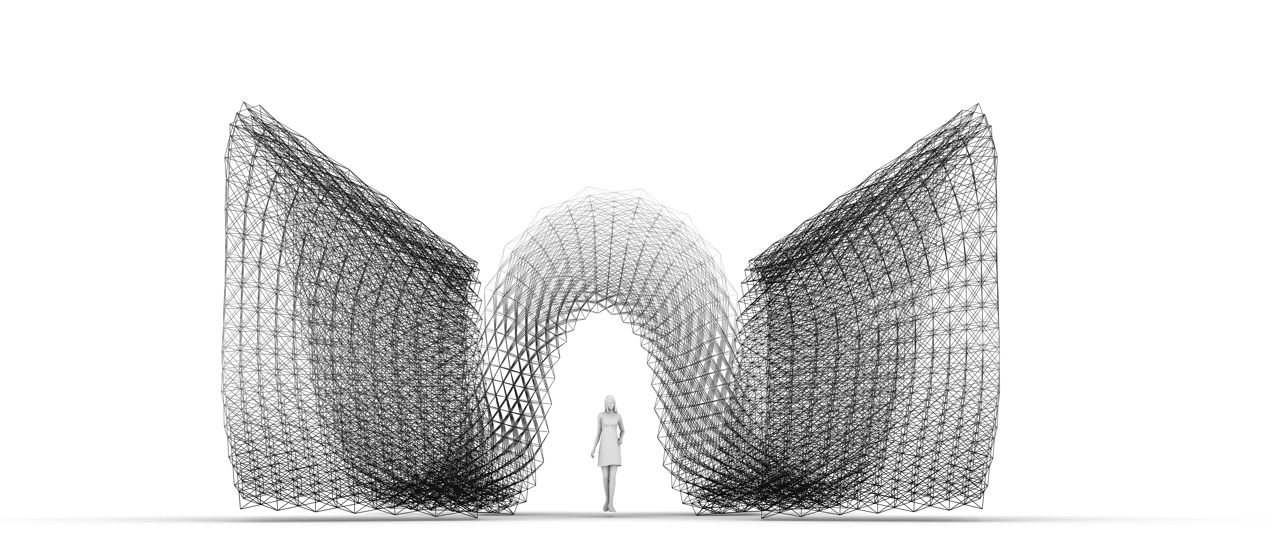

Structural System

Why a twisting surface?
● Good load redistribution
● Short spans ⇒ low deflection
● Distinct architectural identity with a strong visual narrative

Initial Calculations of Total Mass and Deflection using a shell structure

Calculations of total Mass and Deflection – Lattice Structure

Input
Diameter    = 5mm
Thickness  = 2.5mm
Christallon range = 2
QR settings = 500

Output
Mass = 192.05 kg
Displacement z = 0.5mm
Displacement y = 2.6mm
Beams = 24,688
Length line = 4,356.5 m
Bounding Box = 8 x 6.71 x 5.48Utilisation < 1.0  = 0.9950
