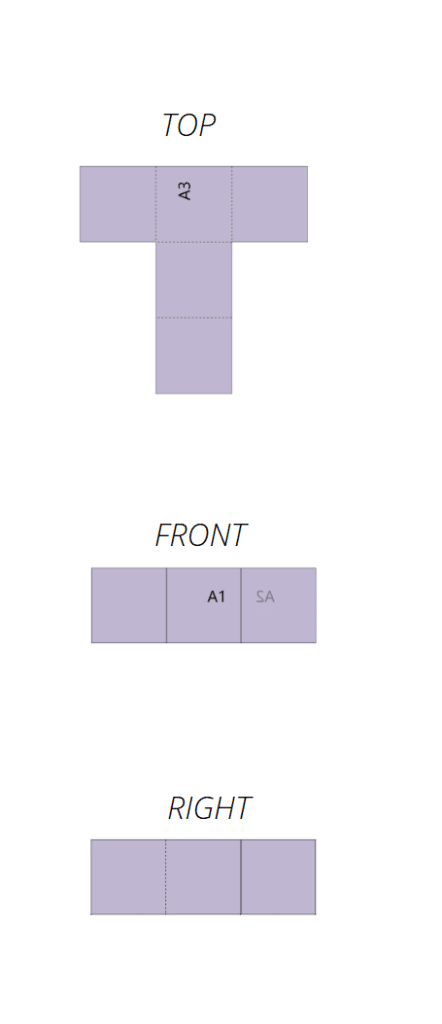

Component Design

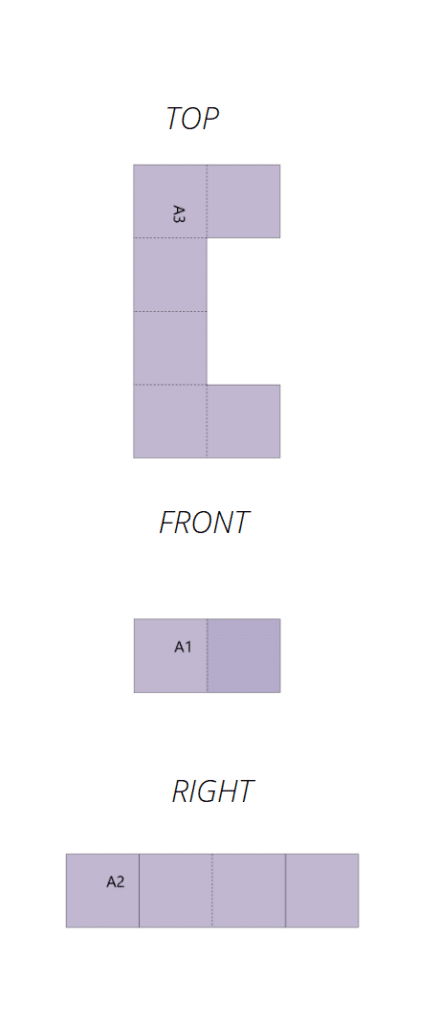

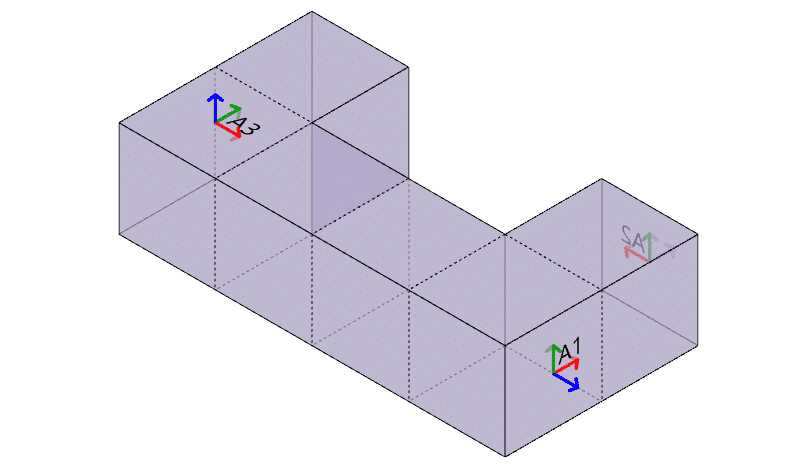

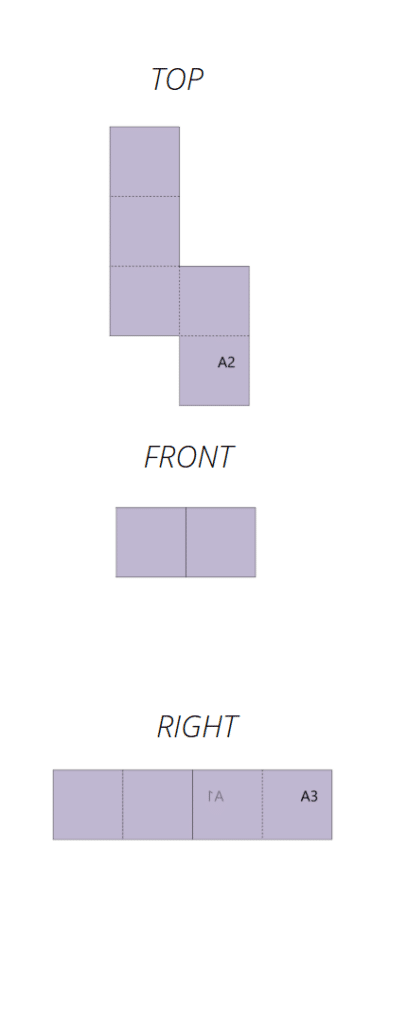

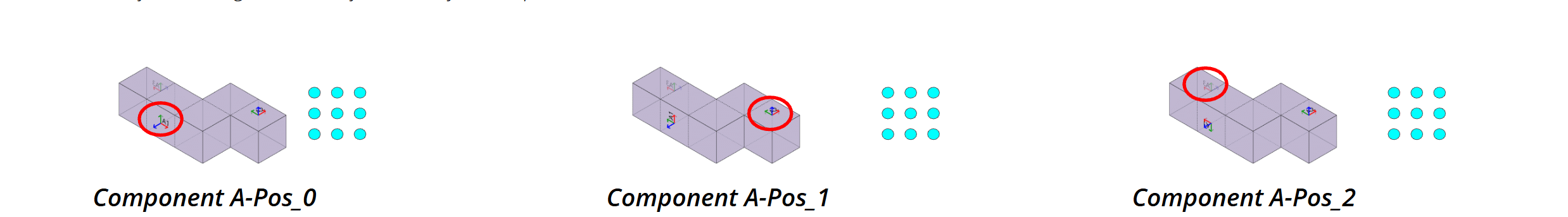

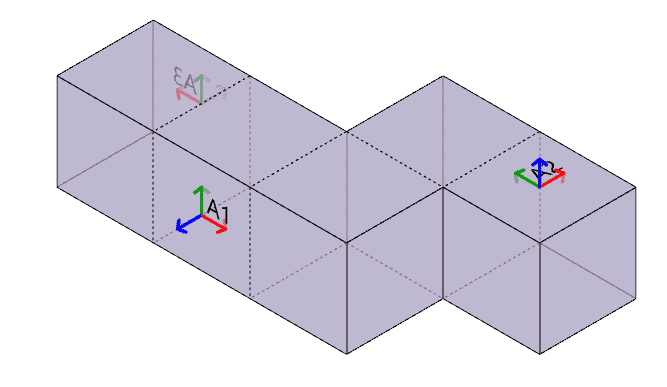

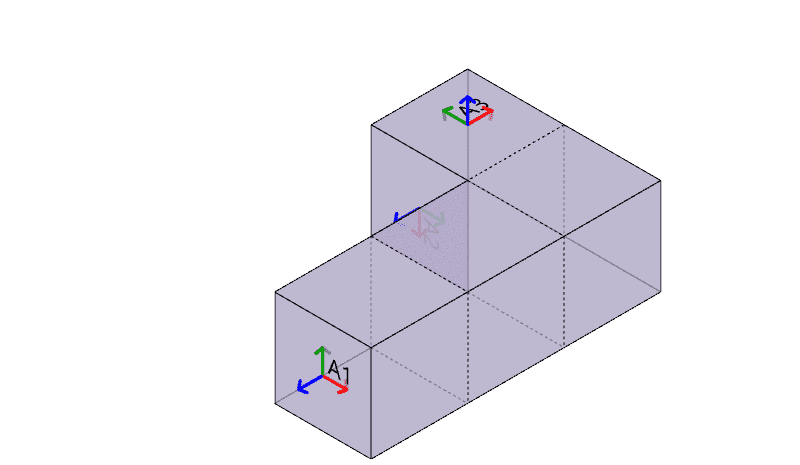

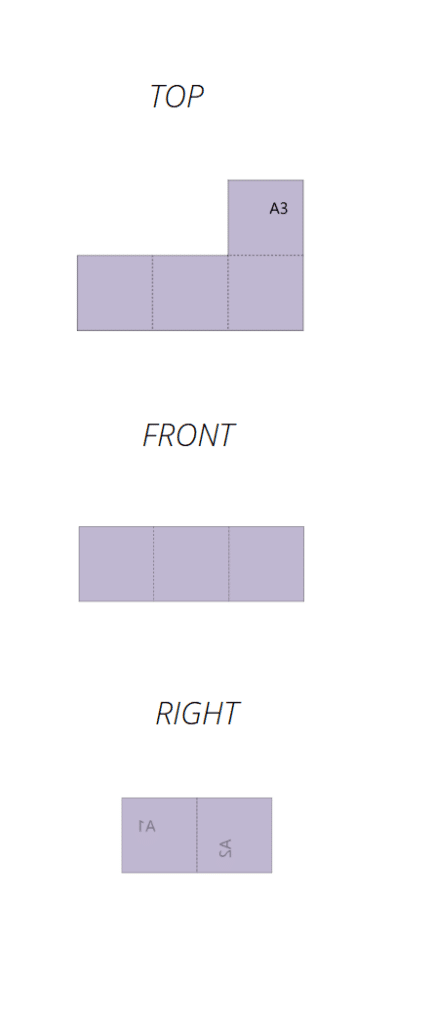

Component A -Pos_0-Rot_0
Amount of connectors: 3
Amount of combination: 9
Successful: 9
Unsuccessful: 0

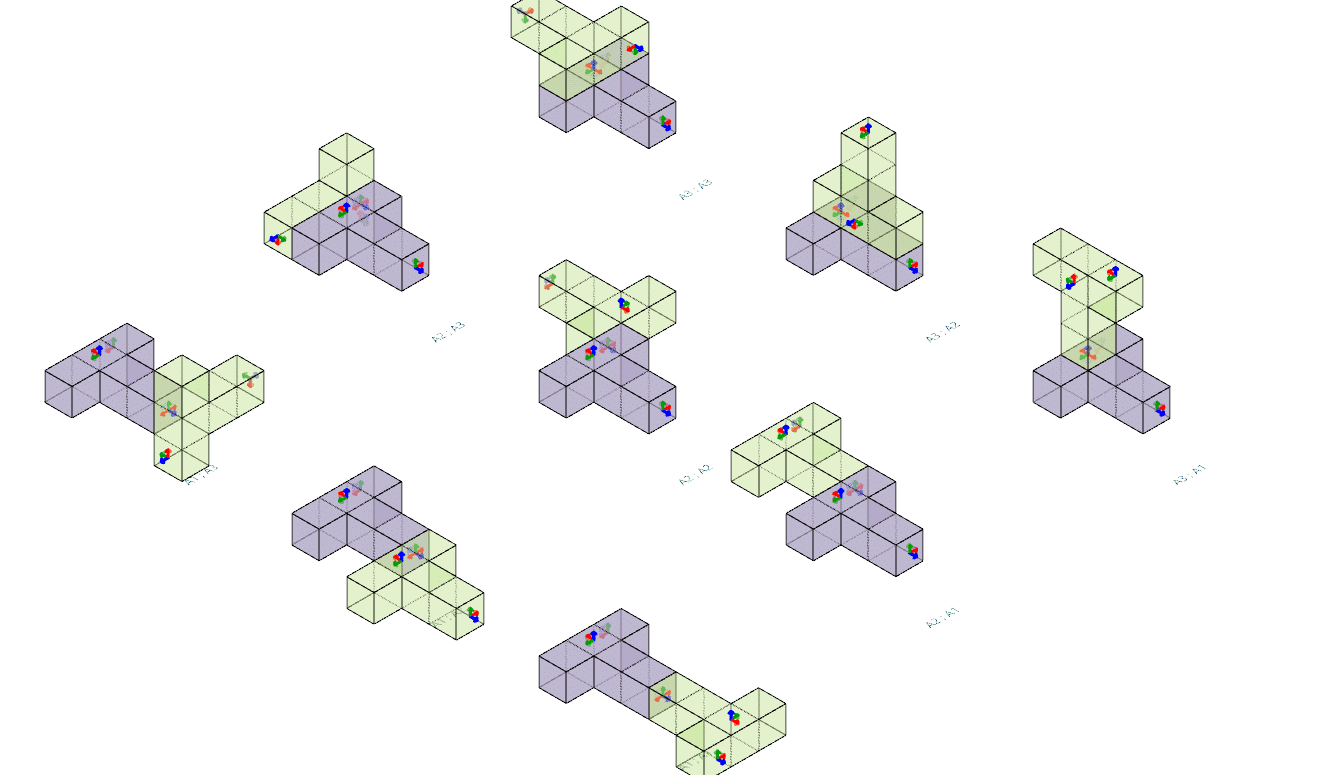

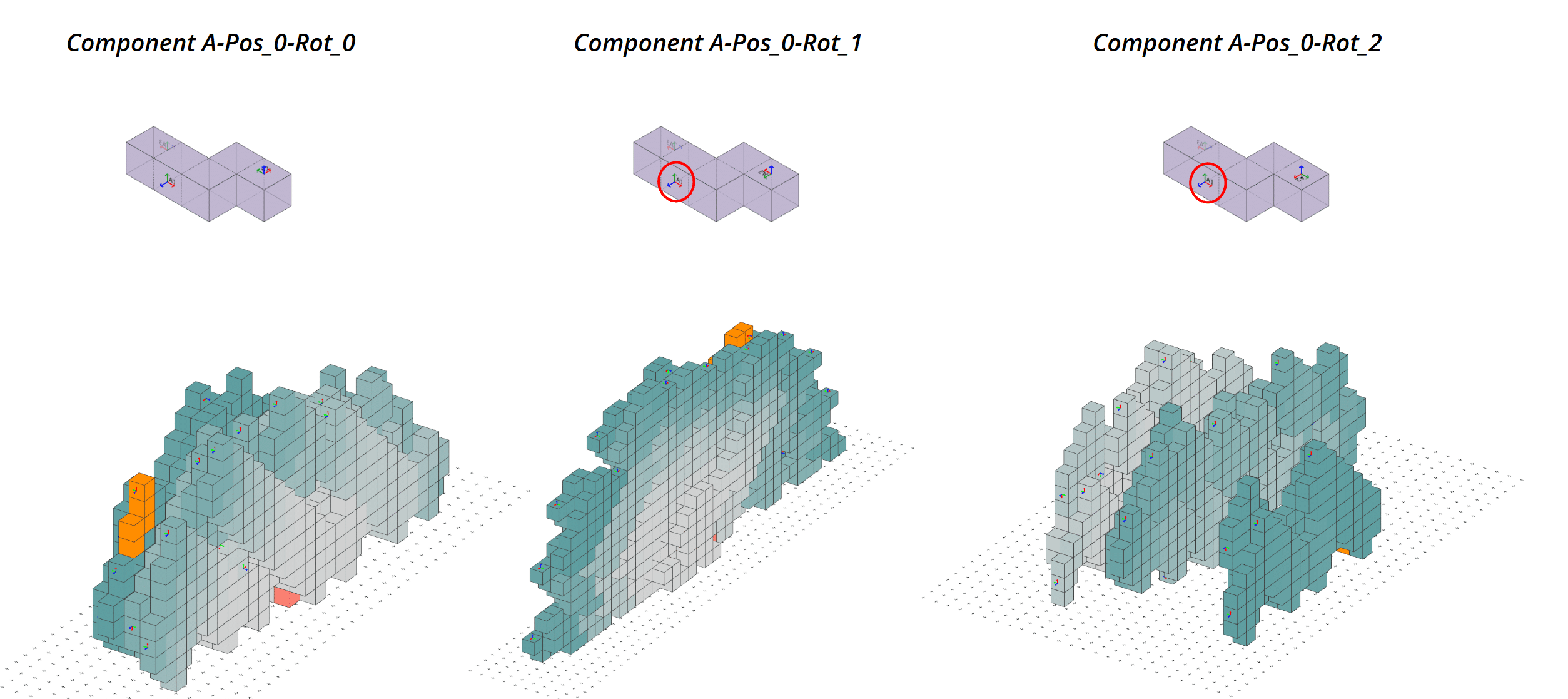

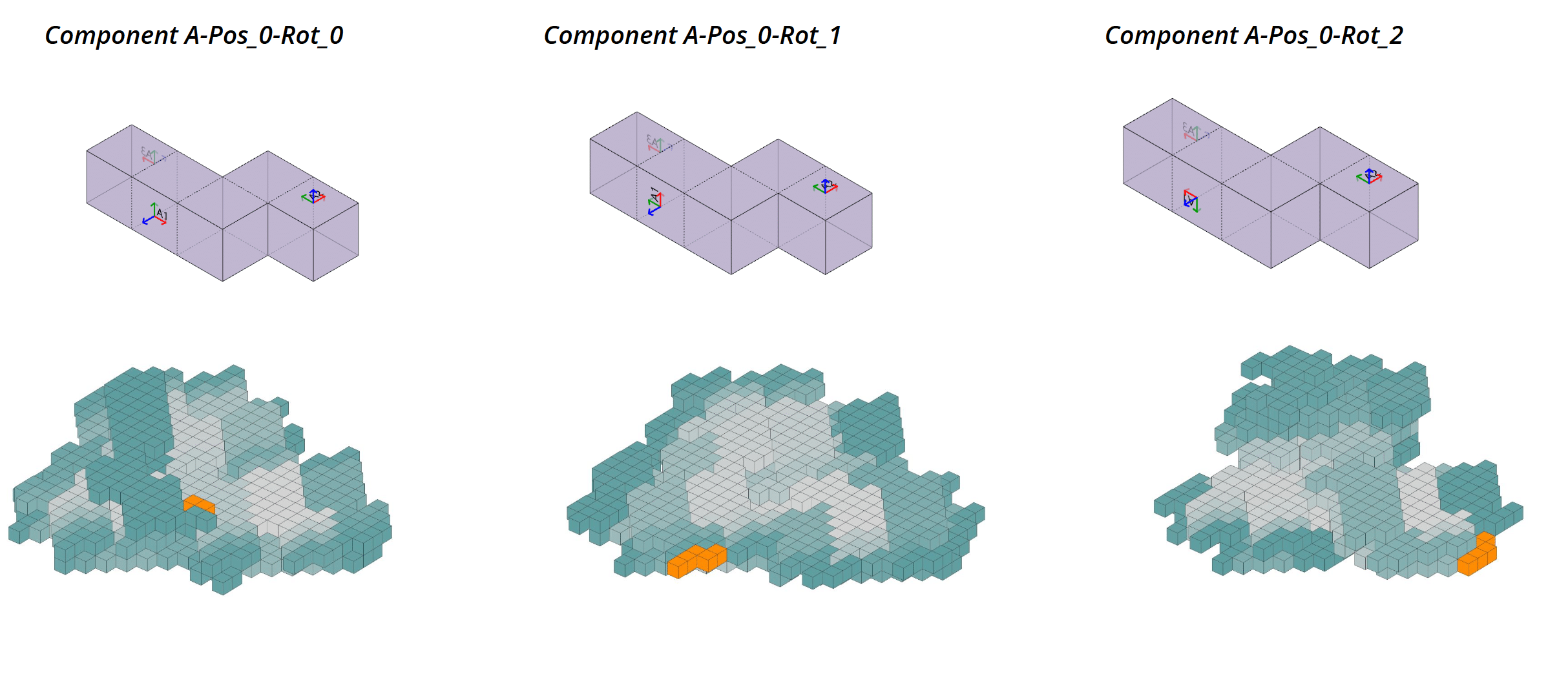

Component A rotation of handles
Variation of assemblage: rotation of handles by 90° step each time

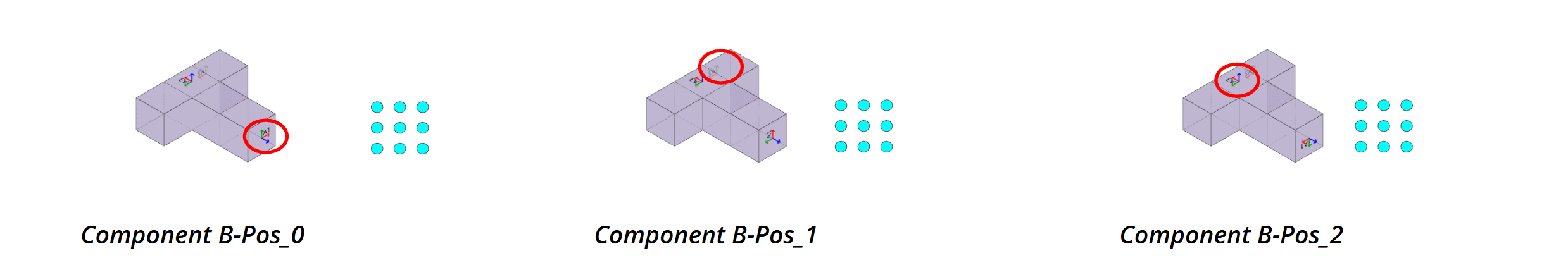

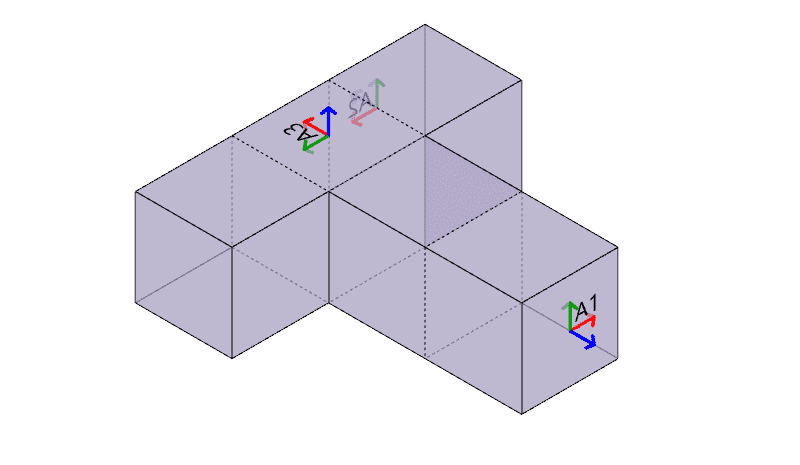

Component B -Pos_0-Rot_0
Amount of connectors: 3
Amount of combination: 9
Successful: 9
Unsuccessful: 0

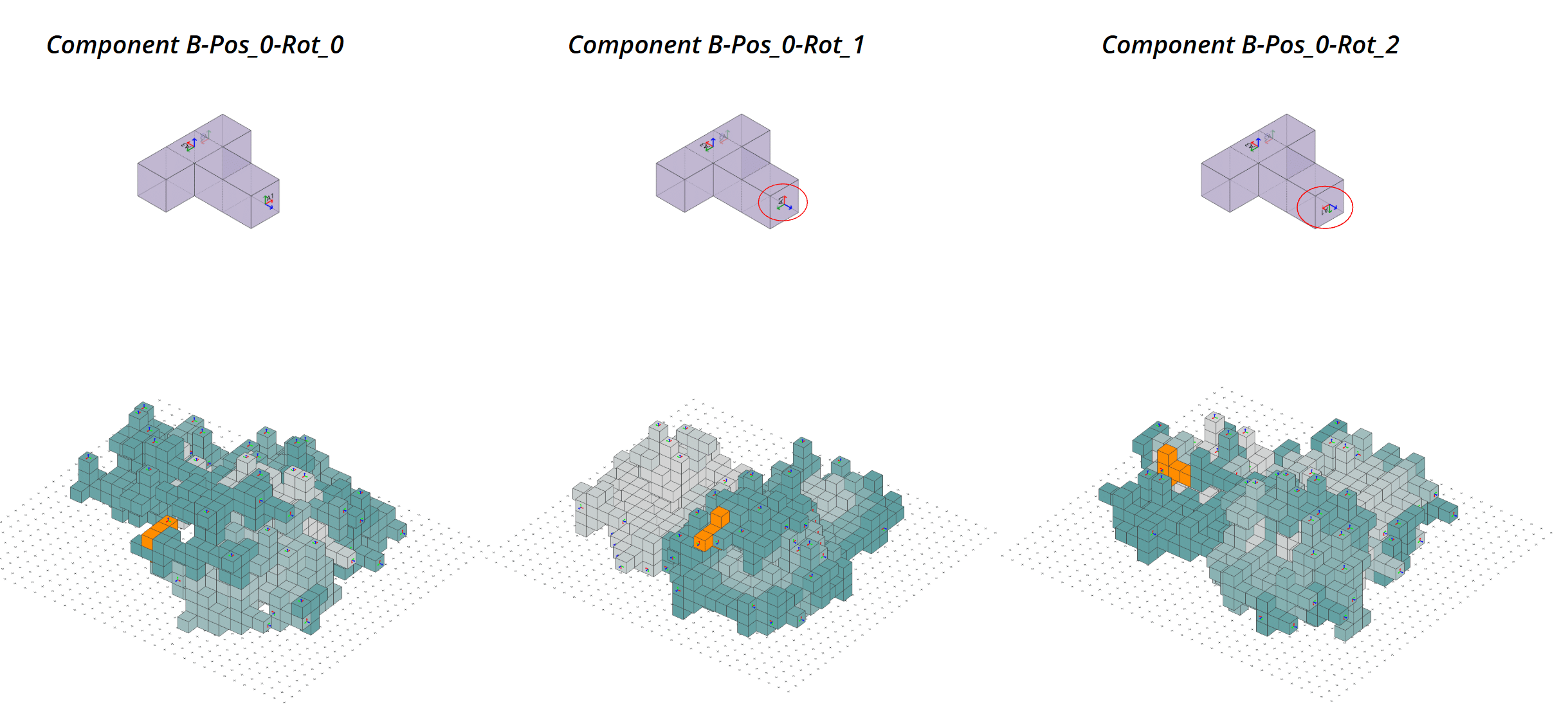

Component B – rotation of handles
Variation of assemblage: rotation of handle by 90° step each time

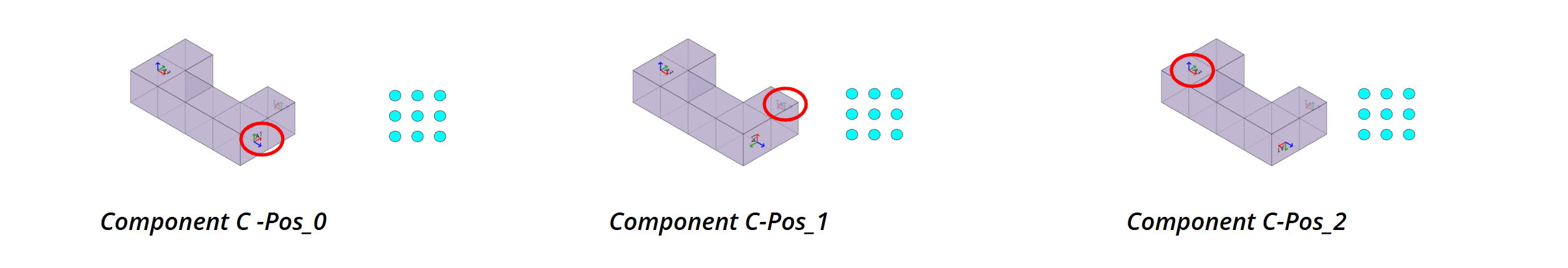

Component C -Pos_0-Rot_0
Amount of connectors: 3
Amount of combination: 9
Successful: 9
Unsuccessful: 0

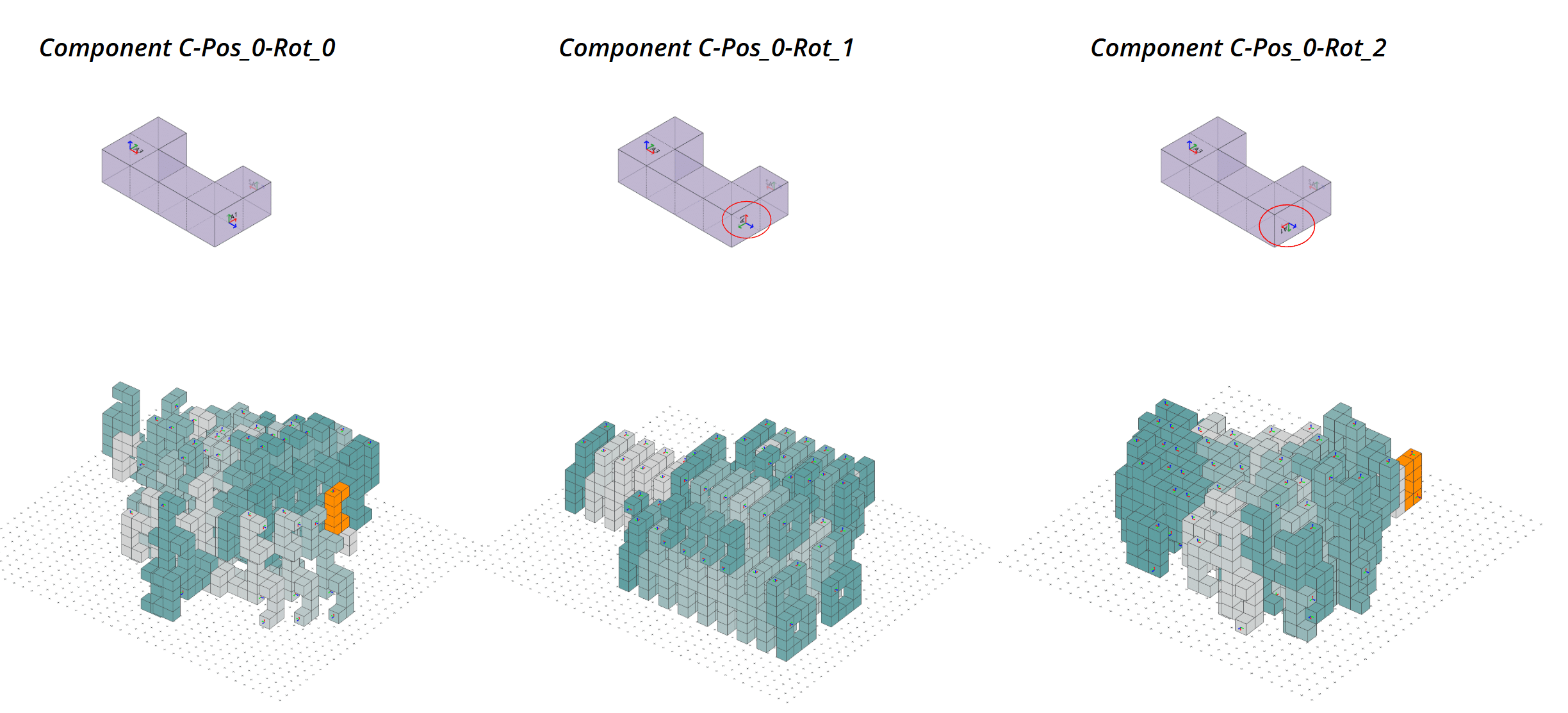

Component C – rotation of handles

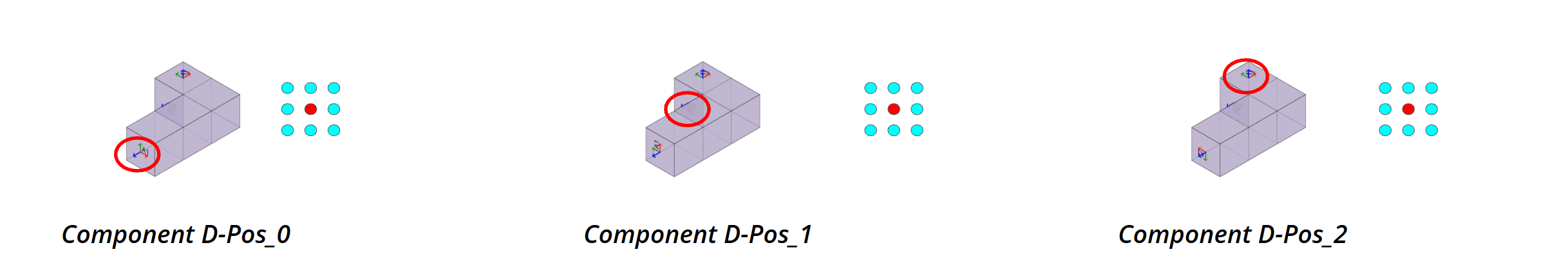

Component D-Pos_0-Rot_0
Amount of connectors: 3
Amount of combination: 9
Successful: 8
Unsuccessful: 1

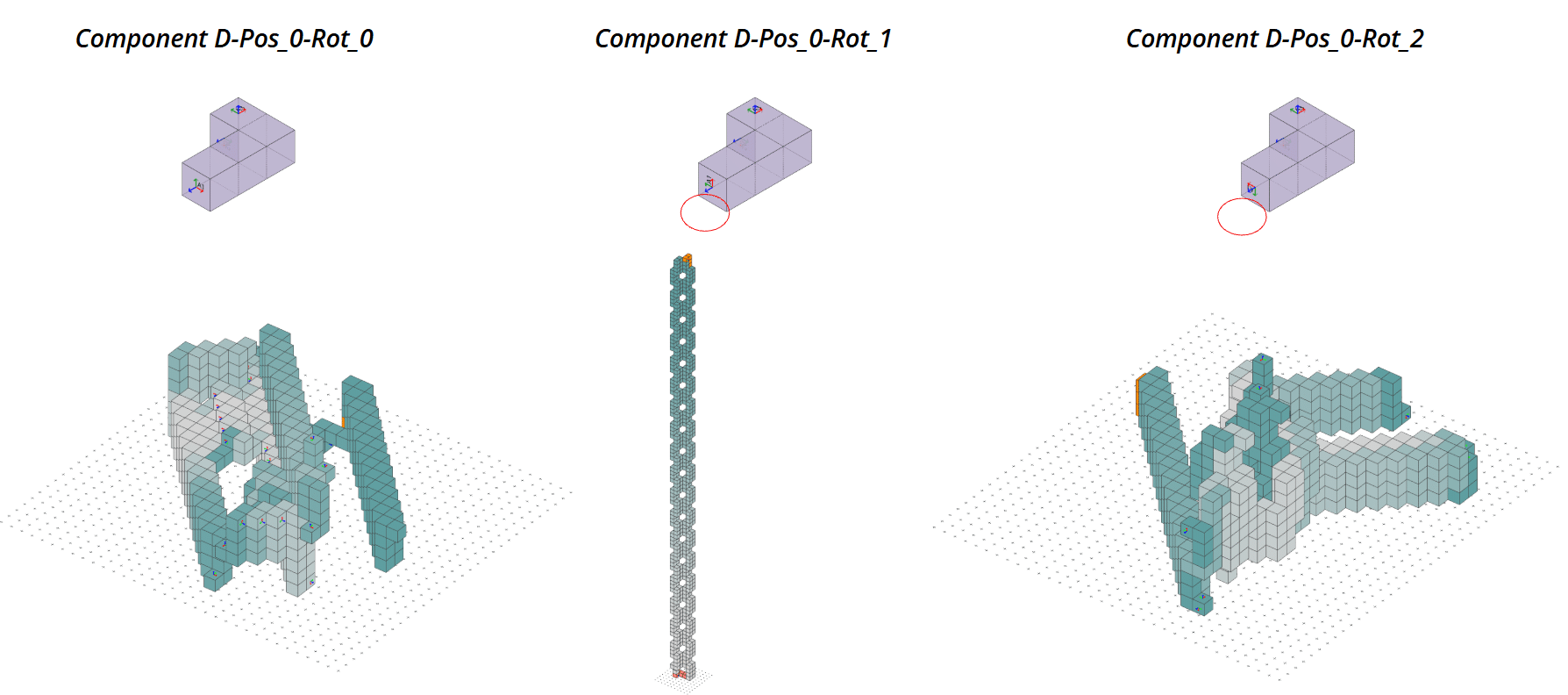

Component D – rotation of handles

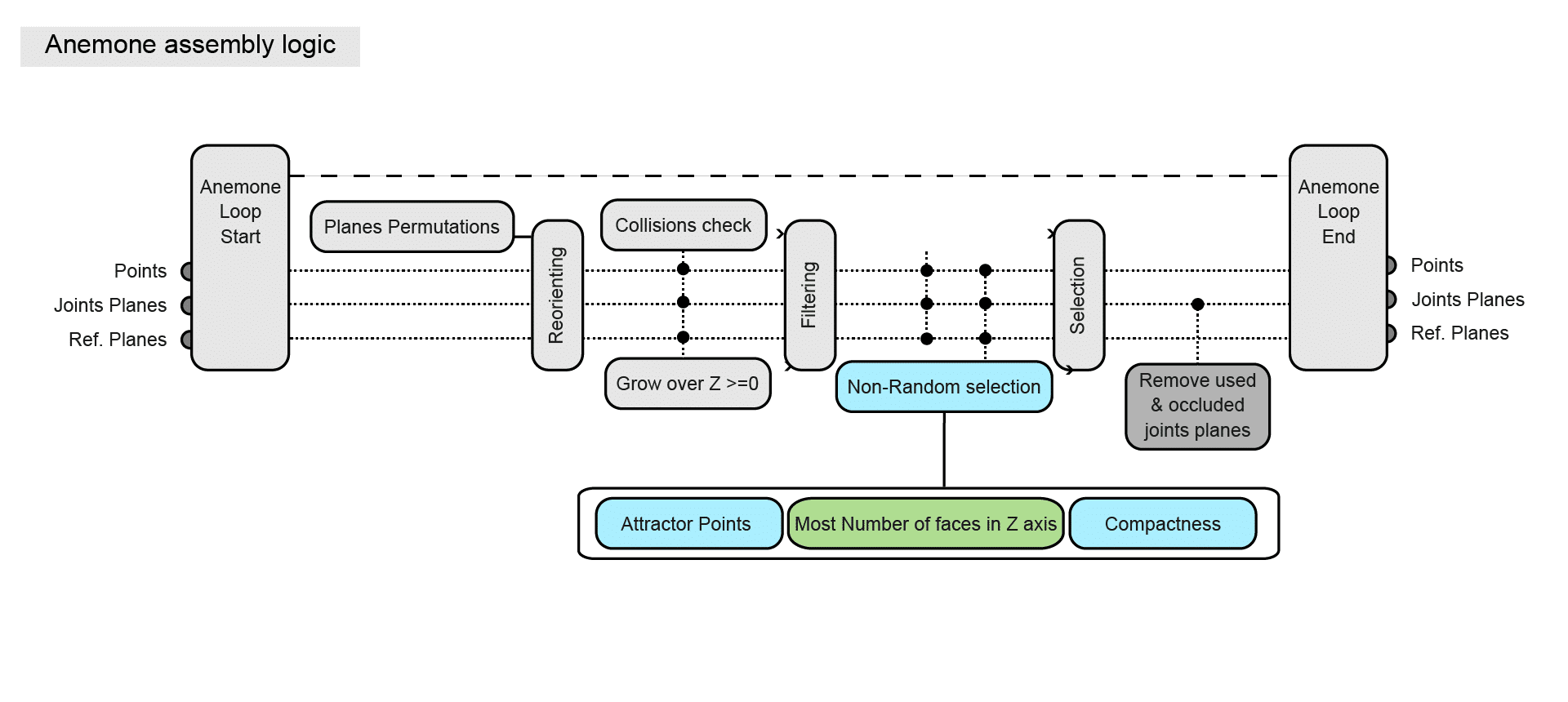

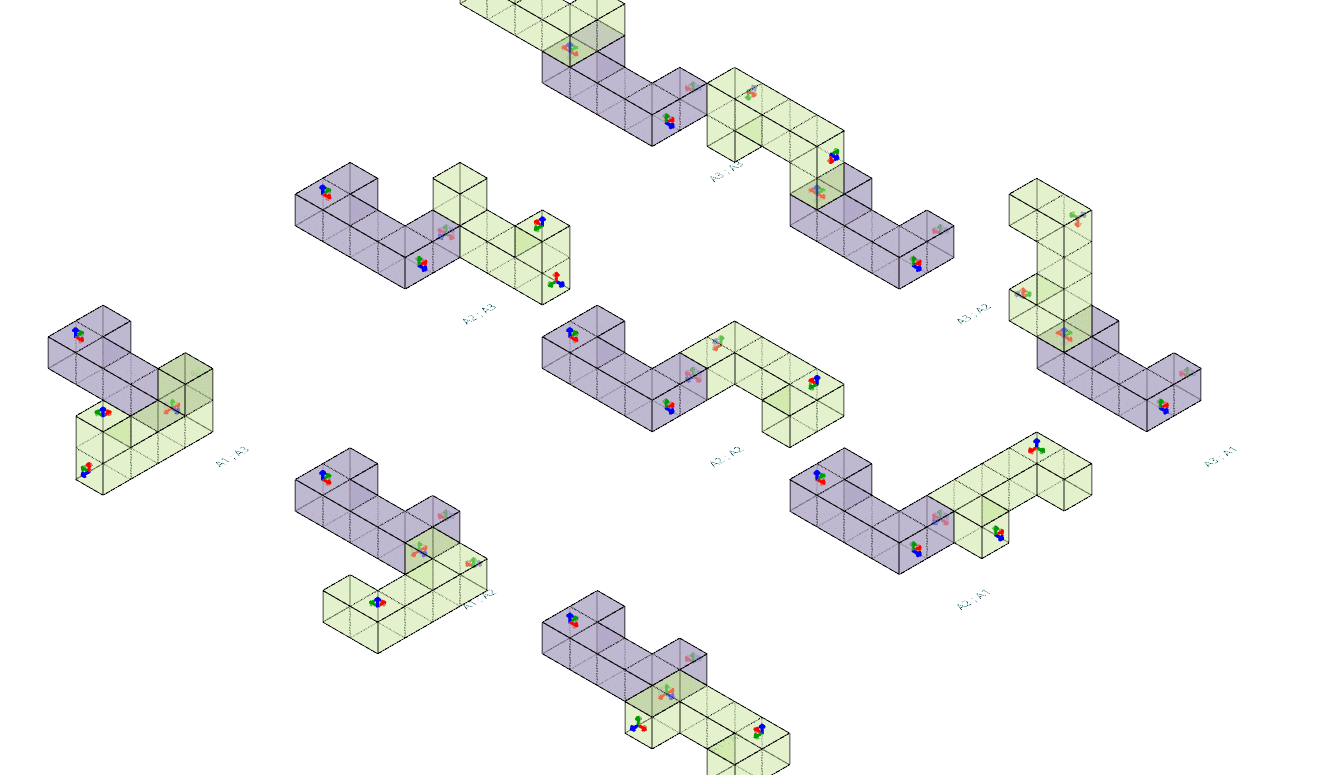

Custom Assemblage Method
Component A – Pos_0 // 150
Component B – Pos_0 // 150
Component C – Pos_0 // 150
Component D – Pos_0 // 150
Custom Evaluation Criteria Custom evaluation criteria – ‘Open to Sky Index’

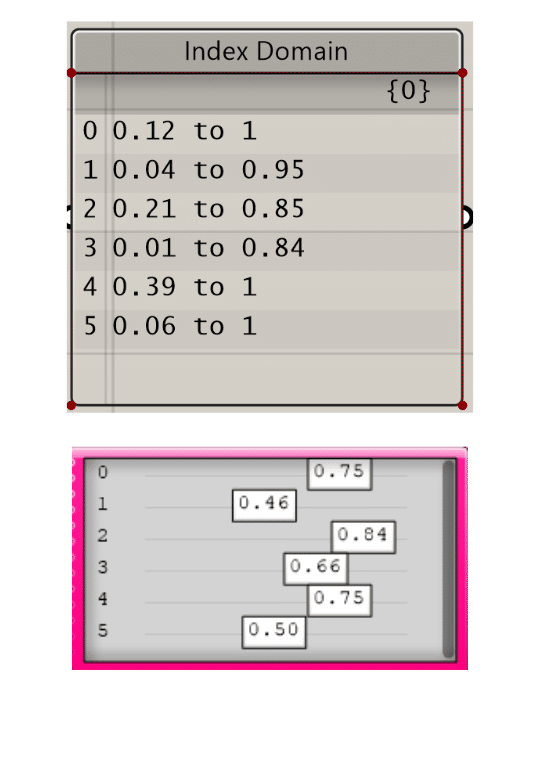

Open to sky index gives us a ratio between the number of horizontal voxel faces that are unobstructed by the assemblage by number of horizontal faces that are obstructed.

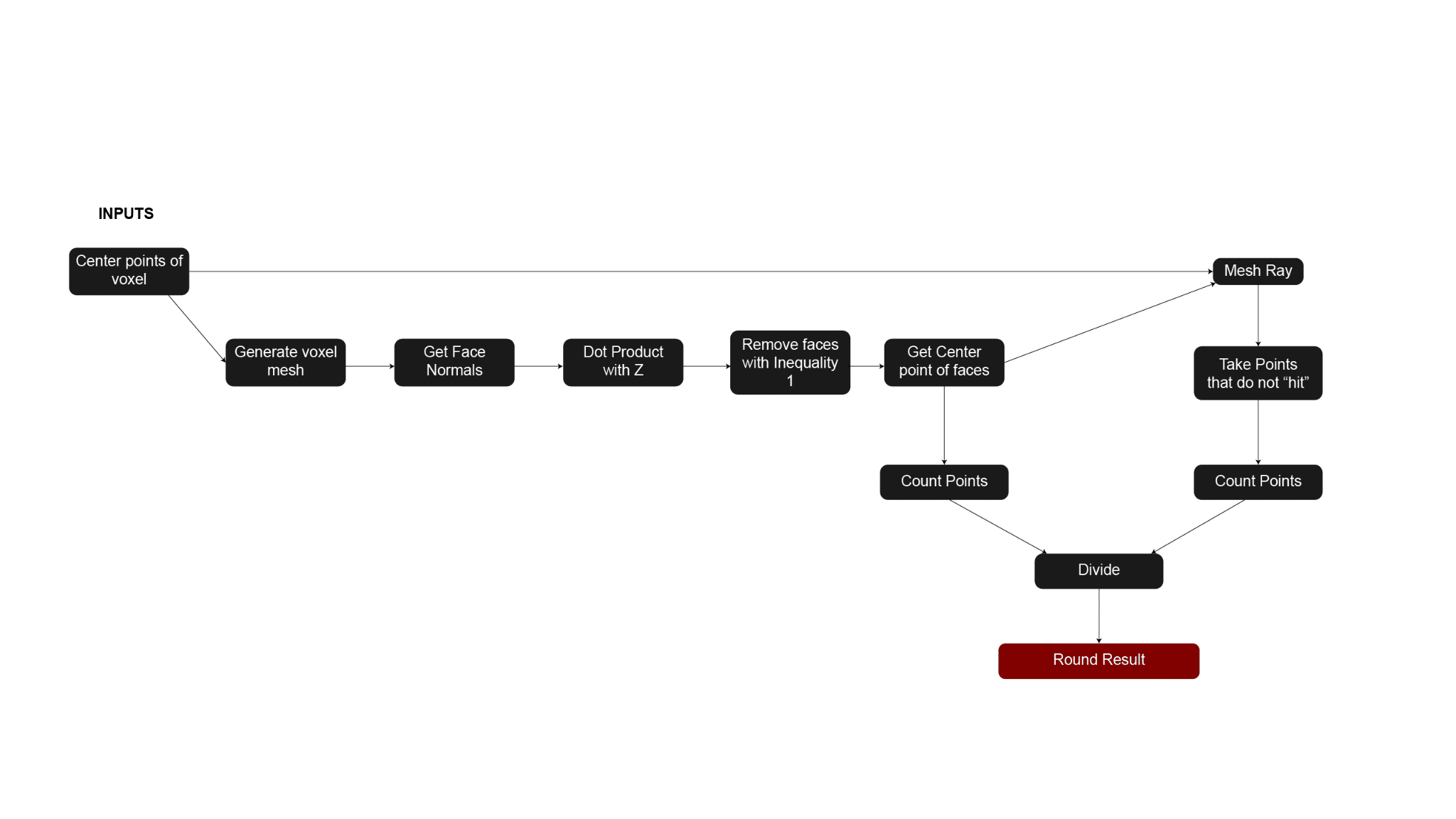

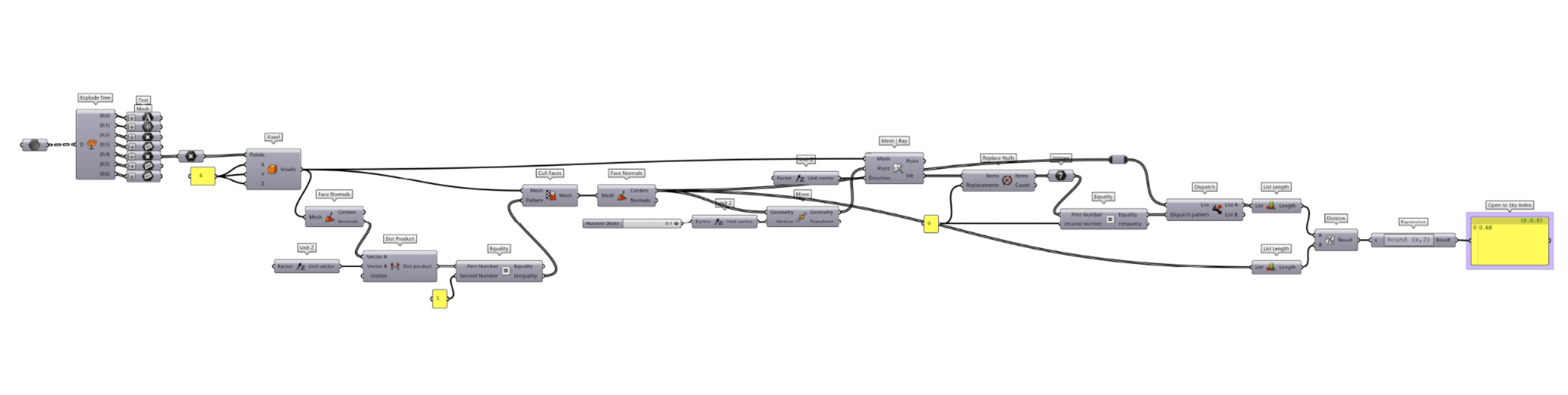

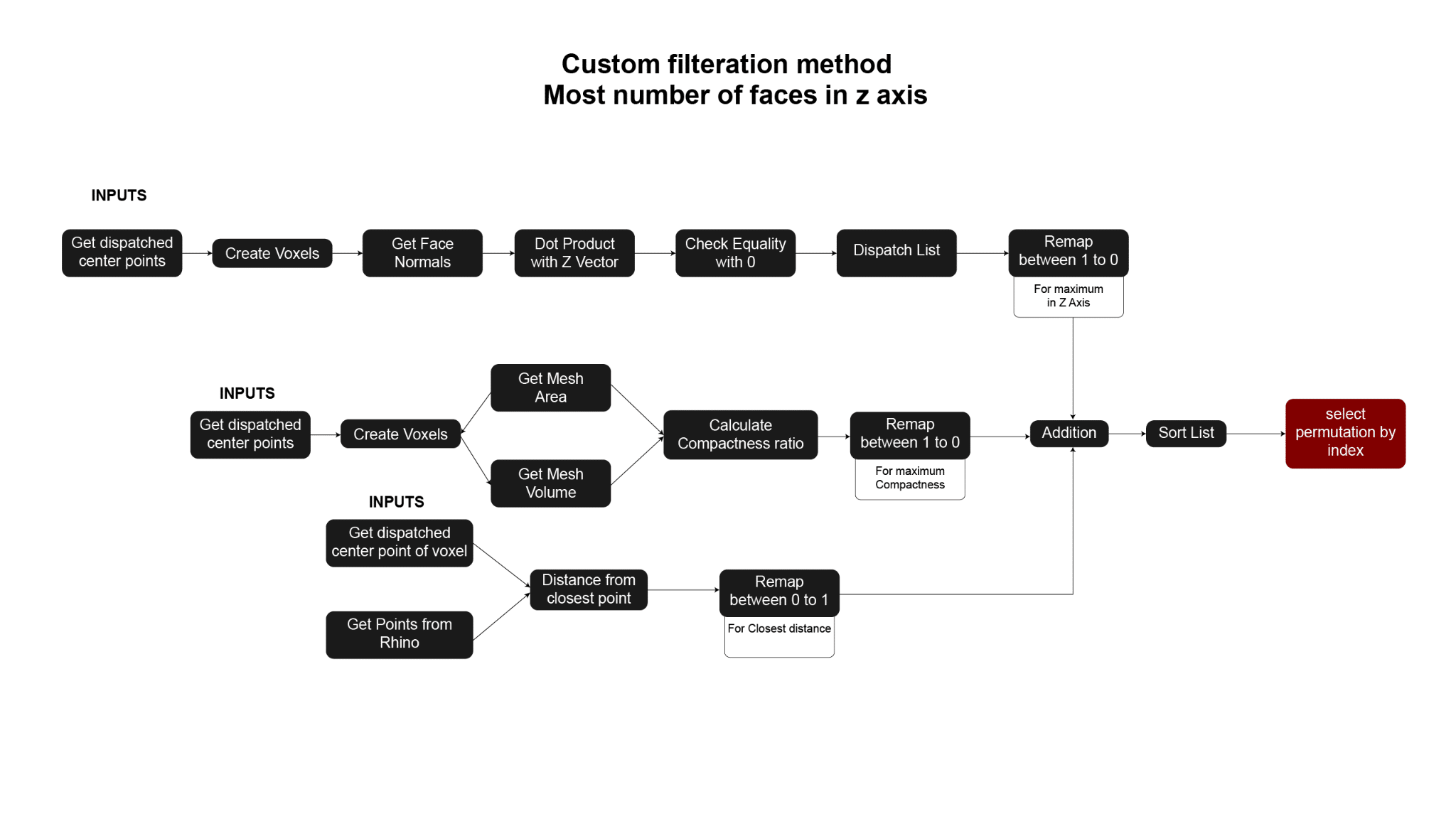

Logic Diagram
Since this index is a ratio of open face to covered faces, the range is between 0 and 1.
Building the Dataset

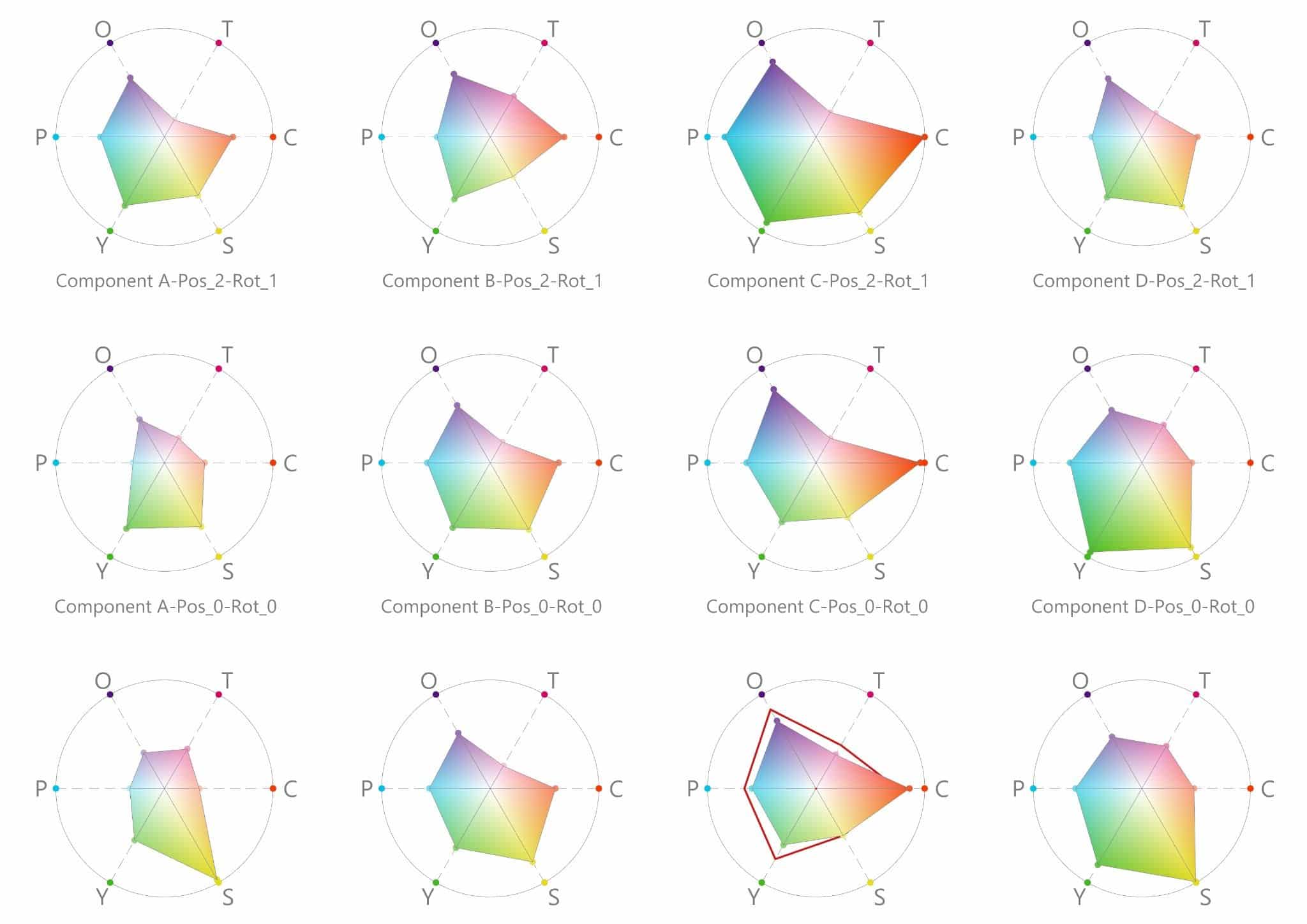

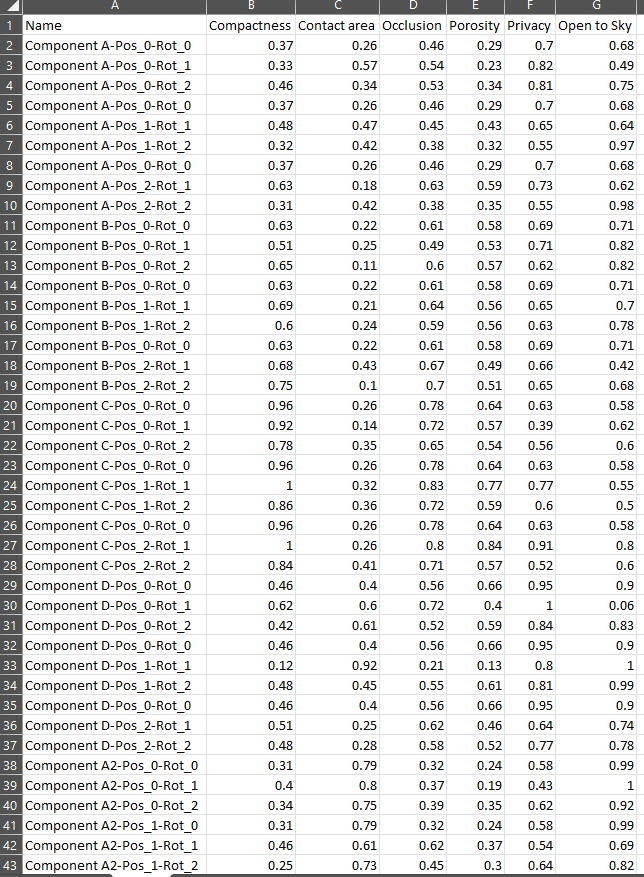

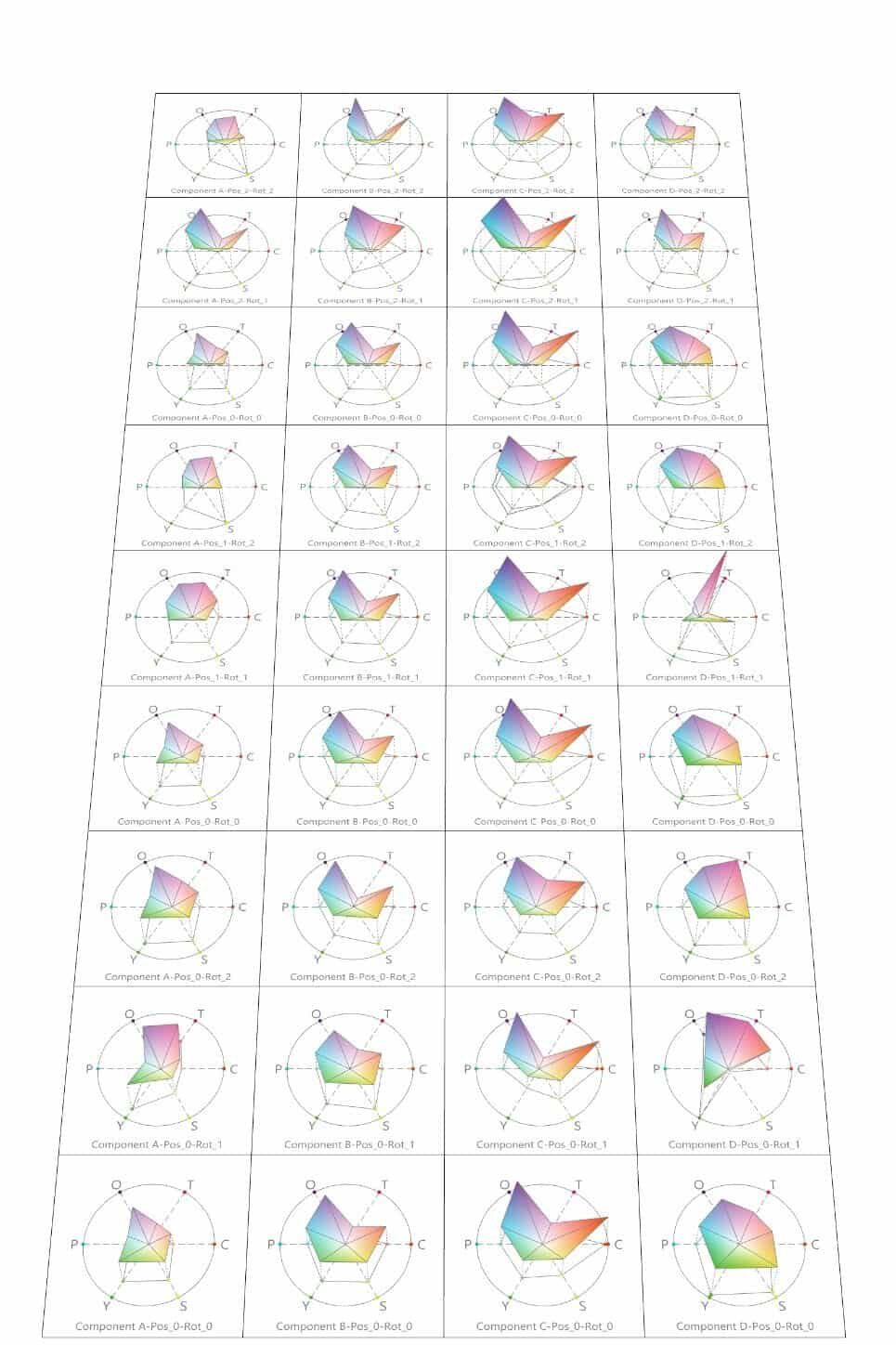

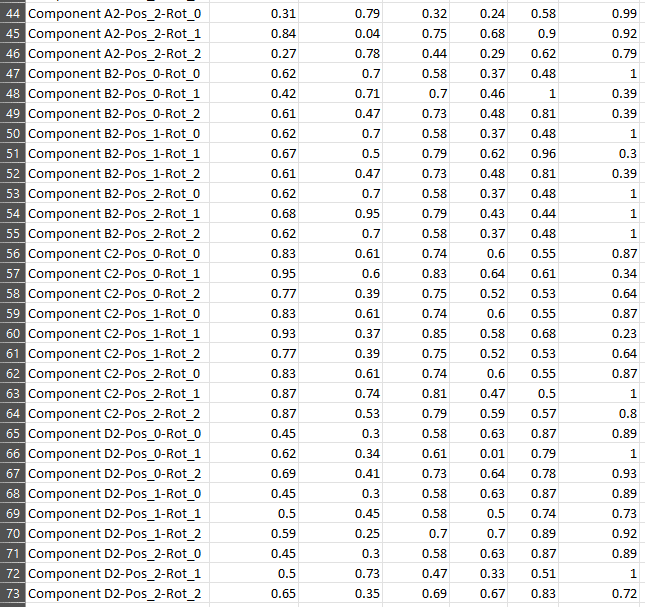

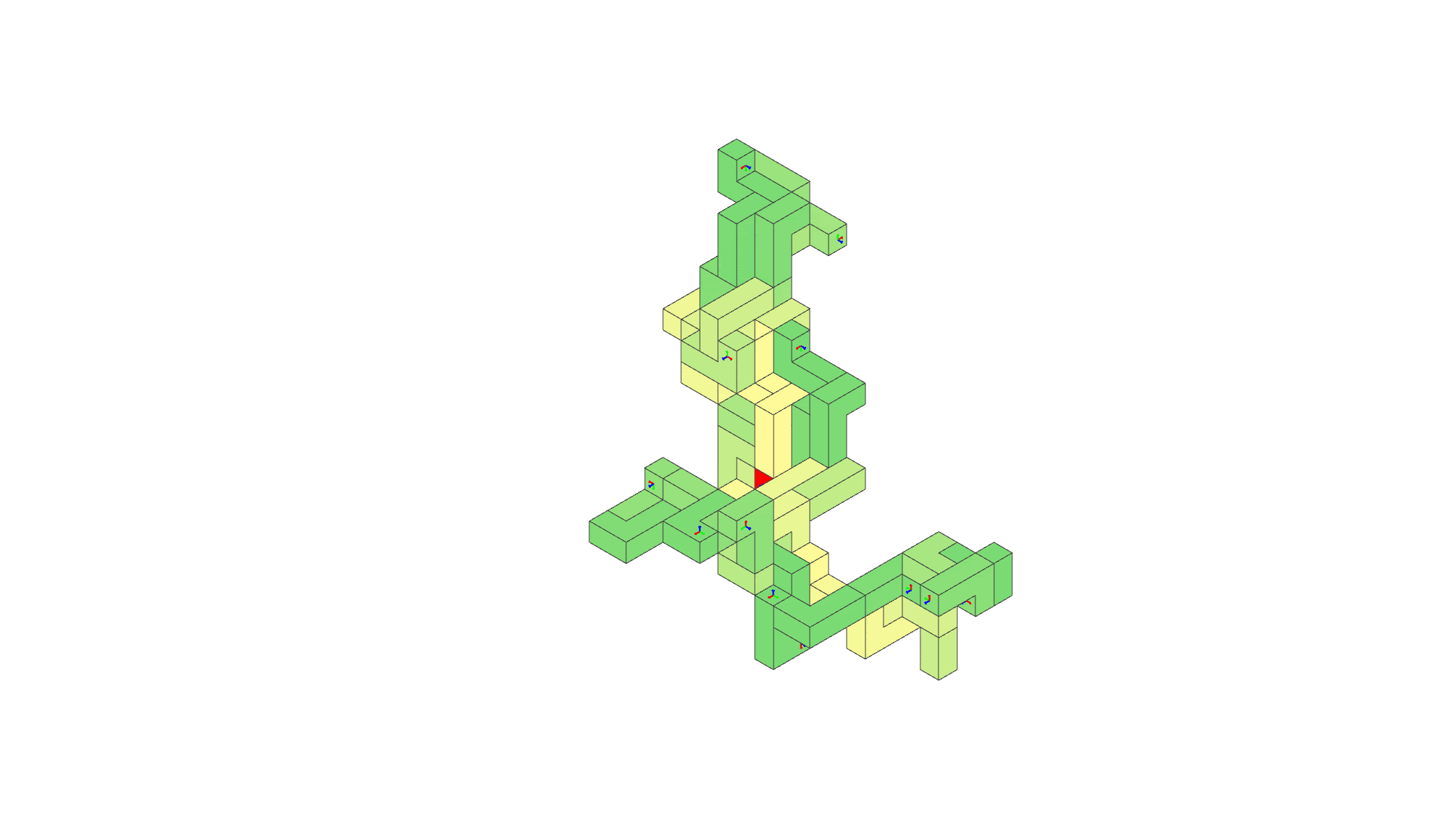

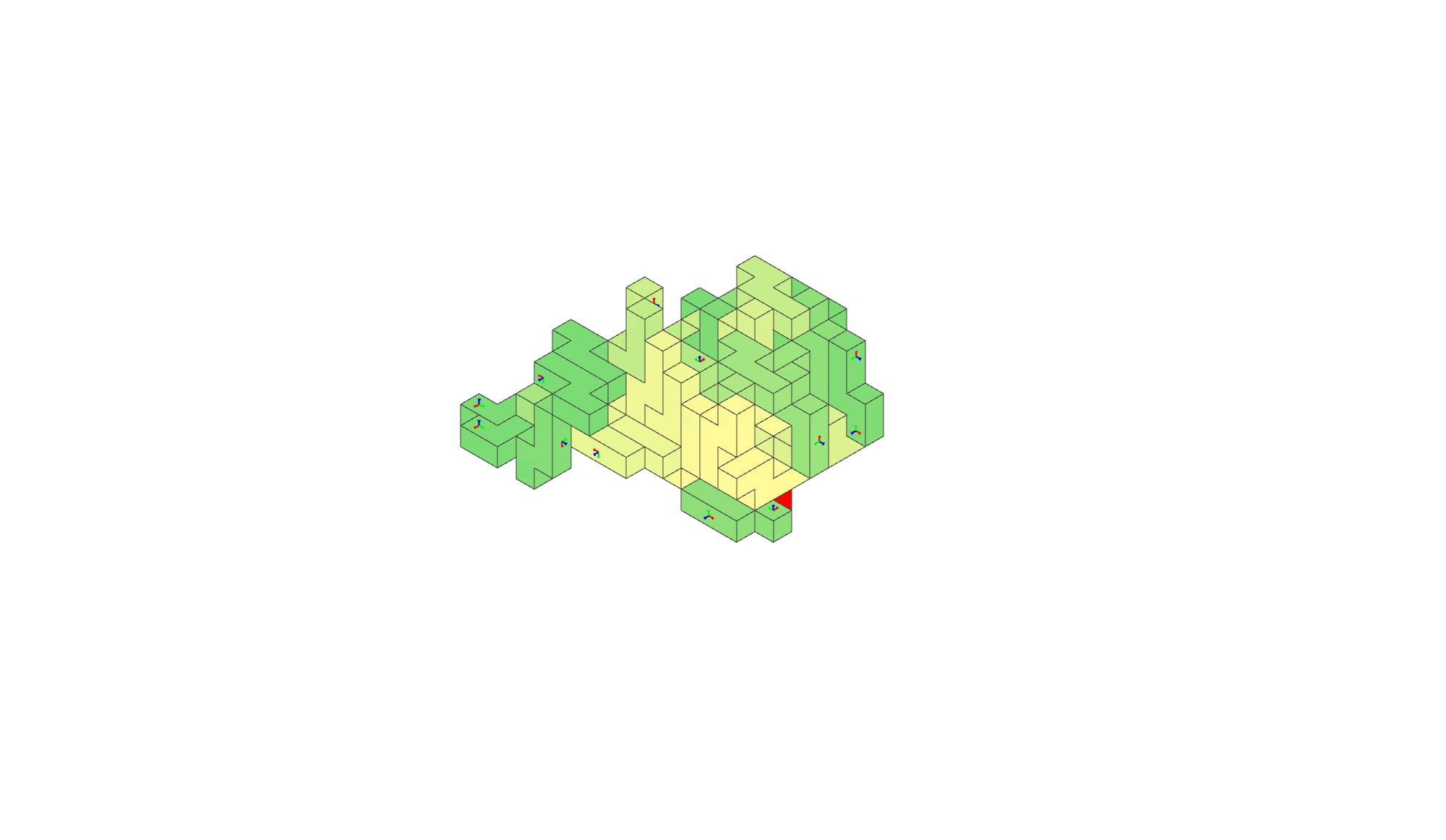

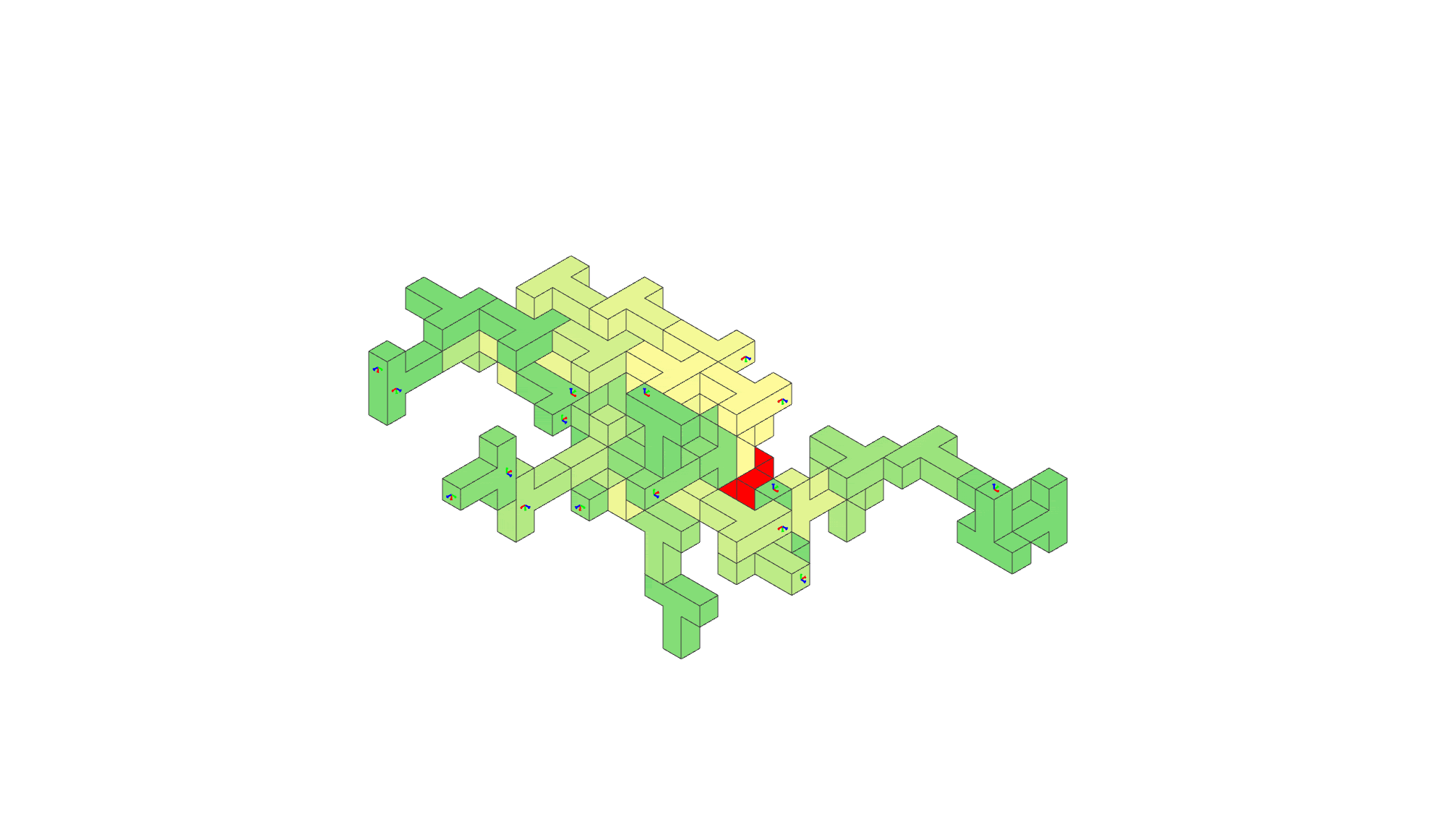

Measuring Assemblages Features

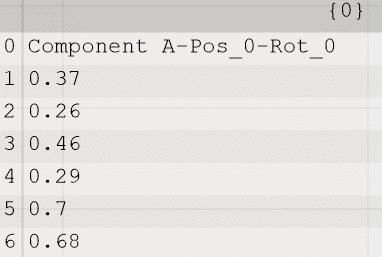

Component_A/B/C/D-Pos_0-Rot_0

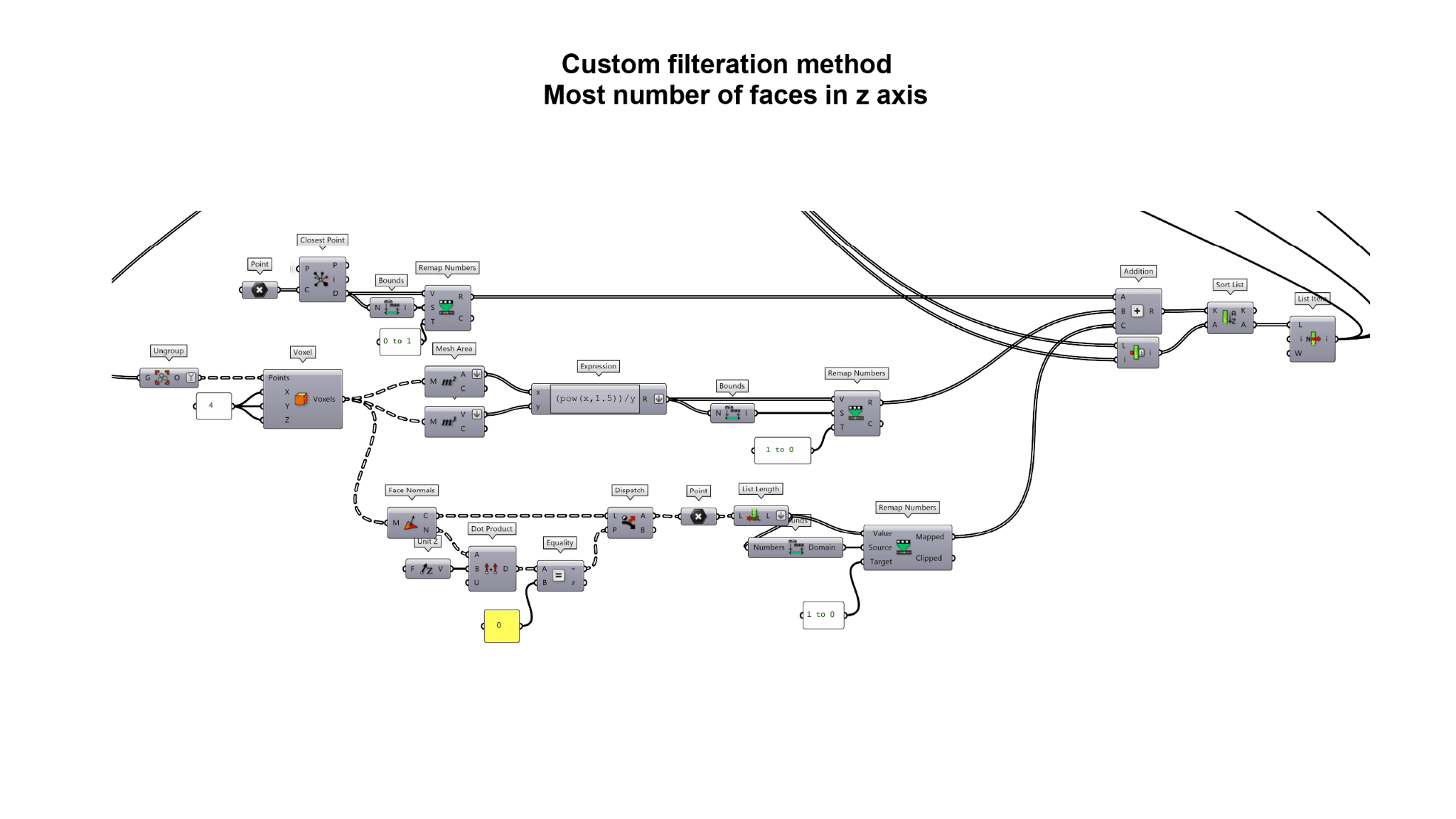

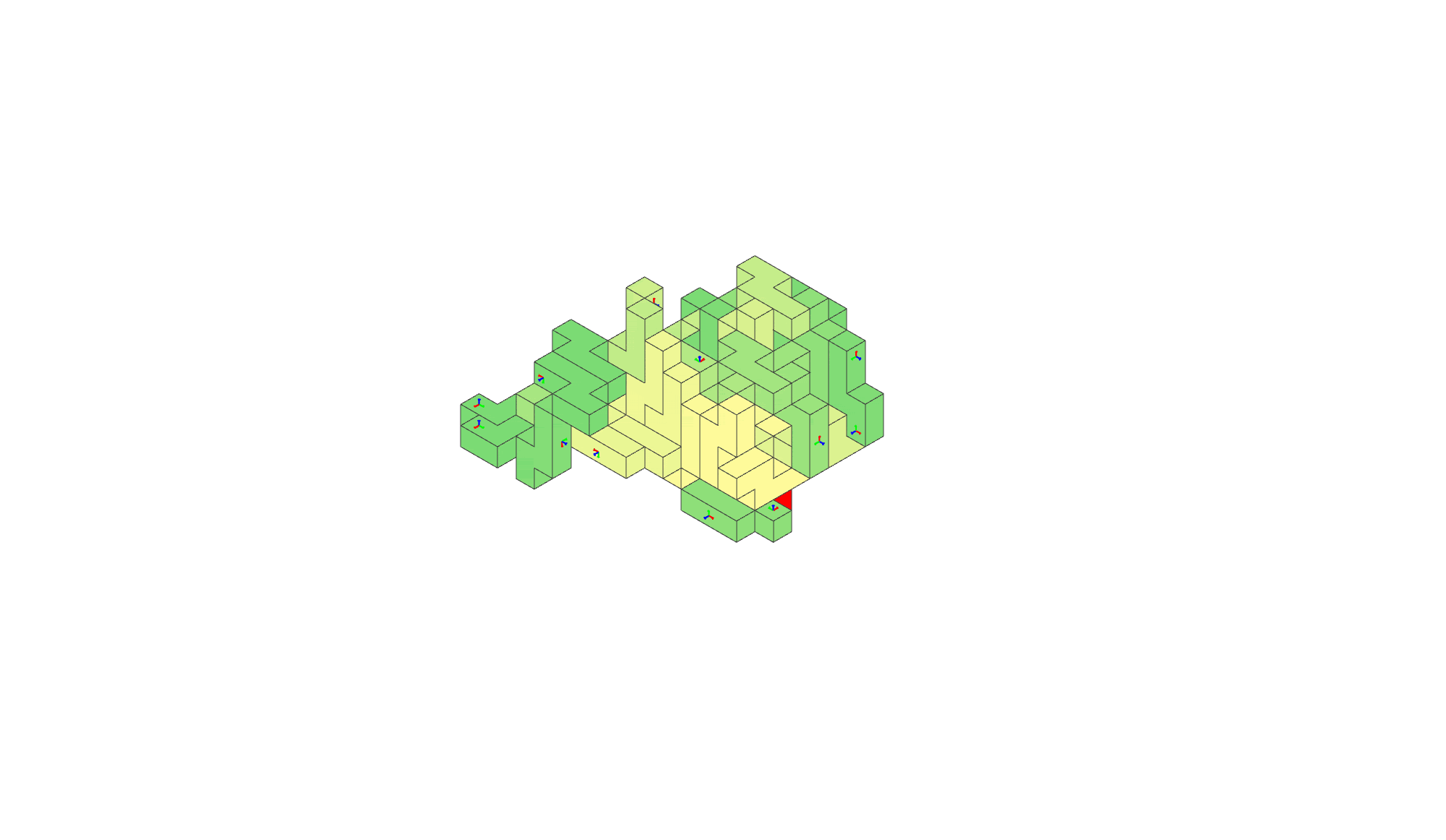

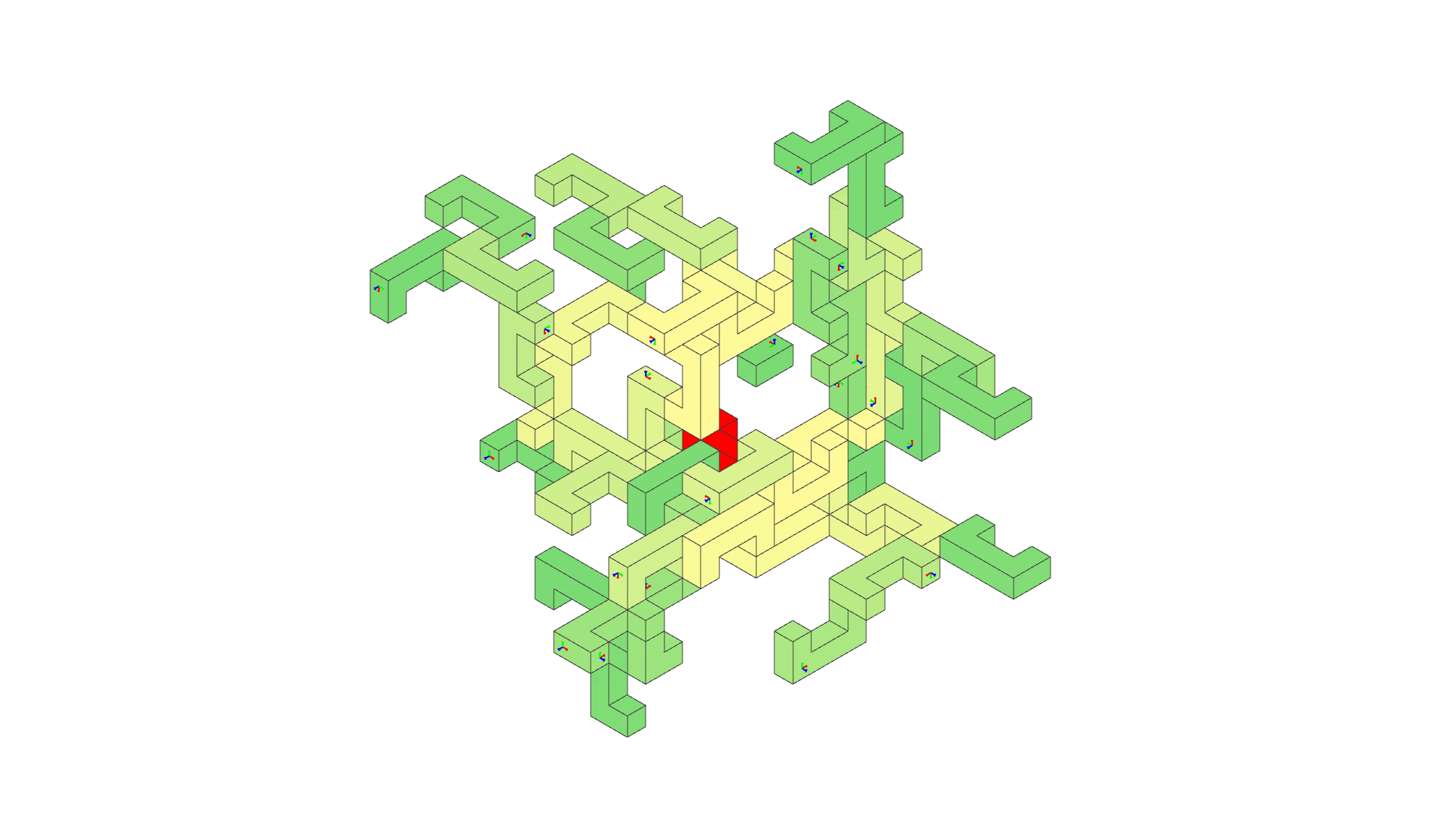

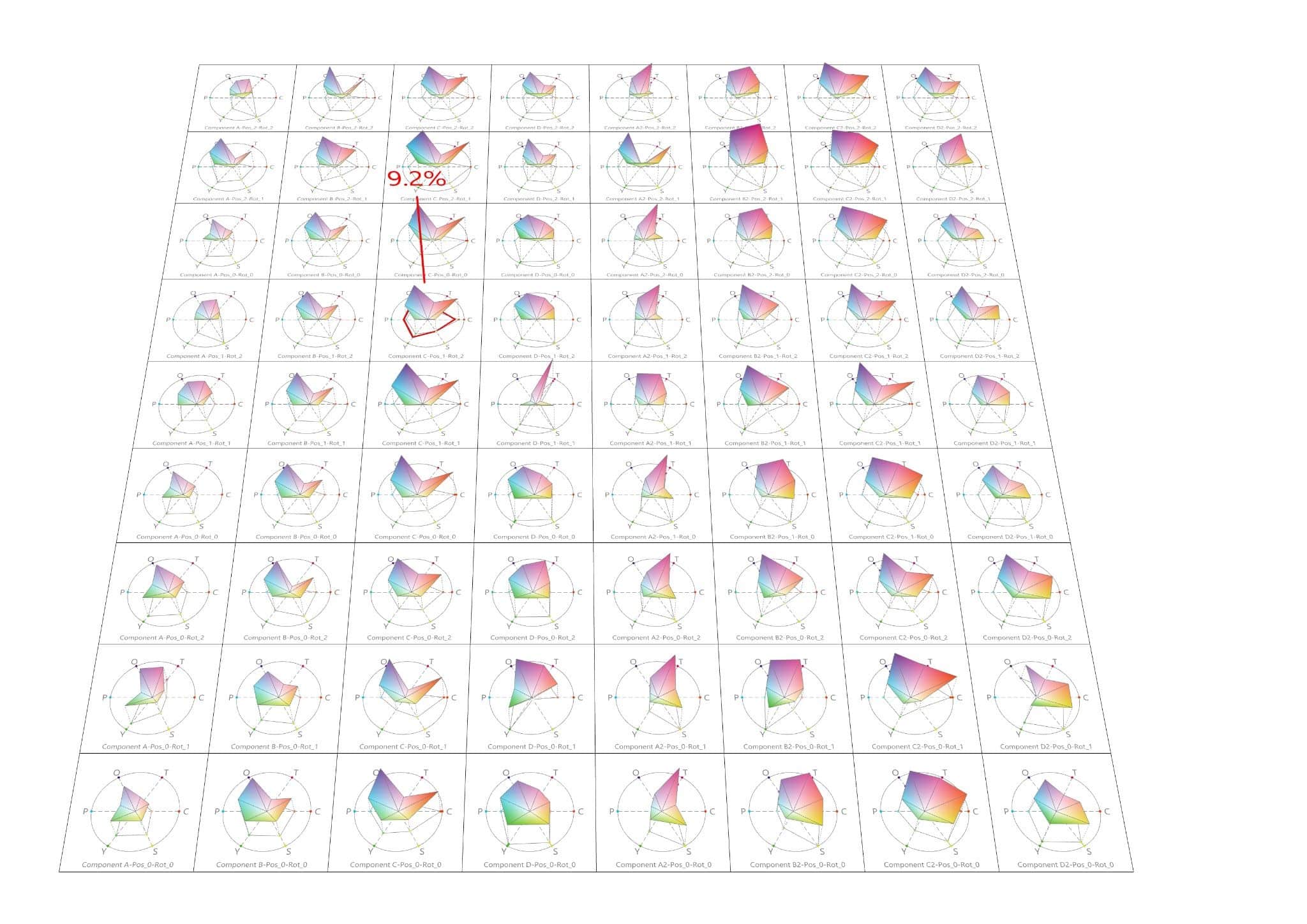

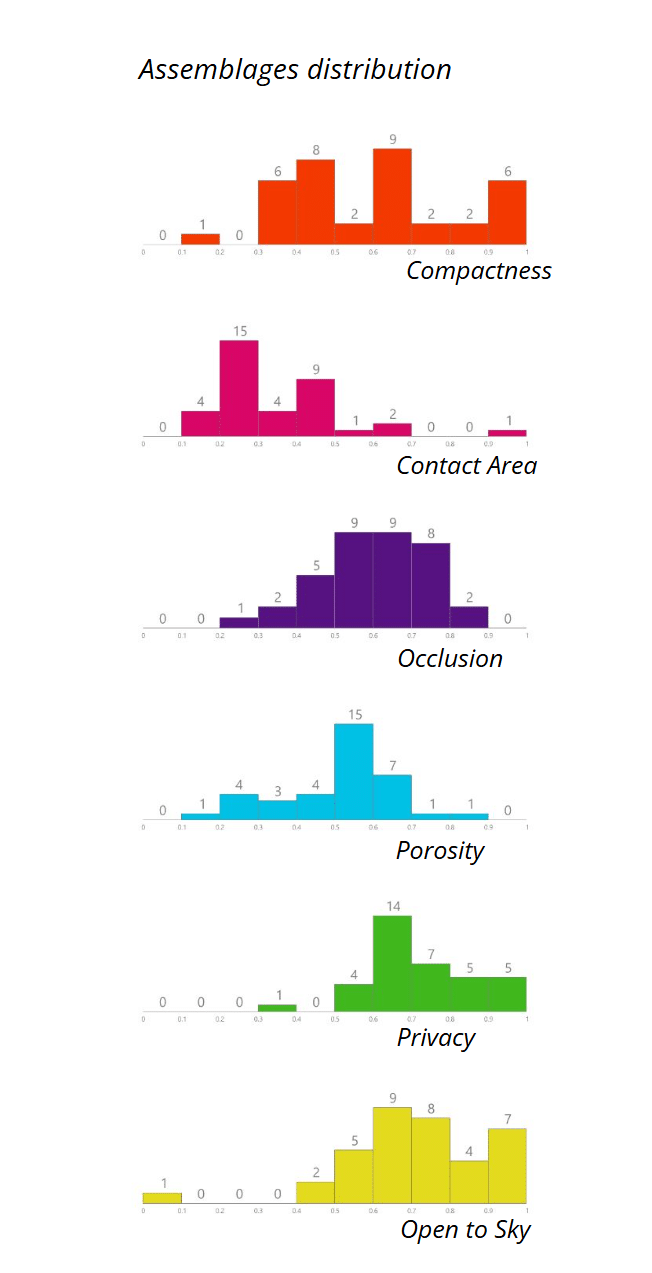

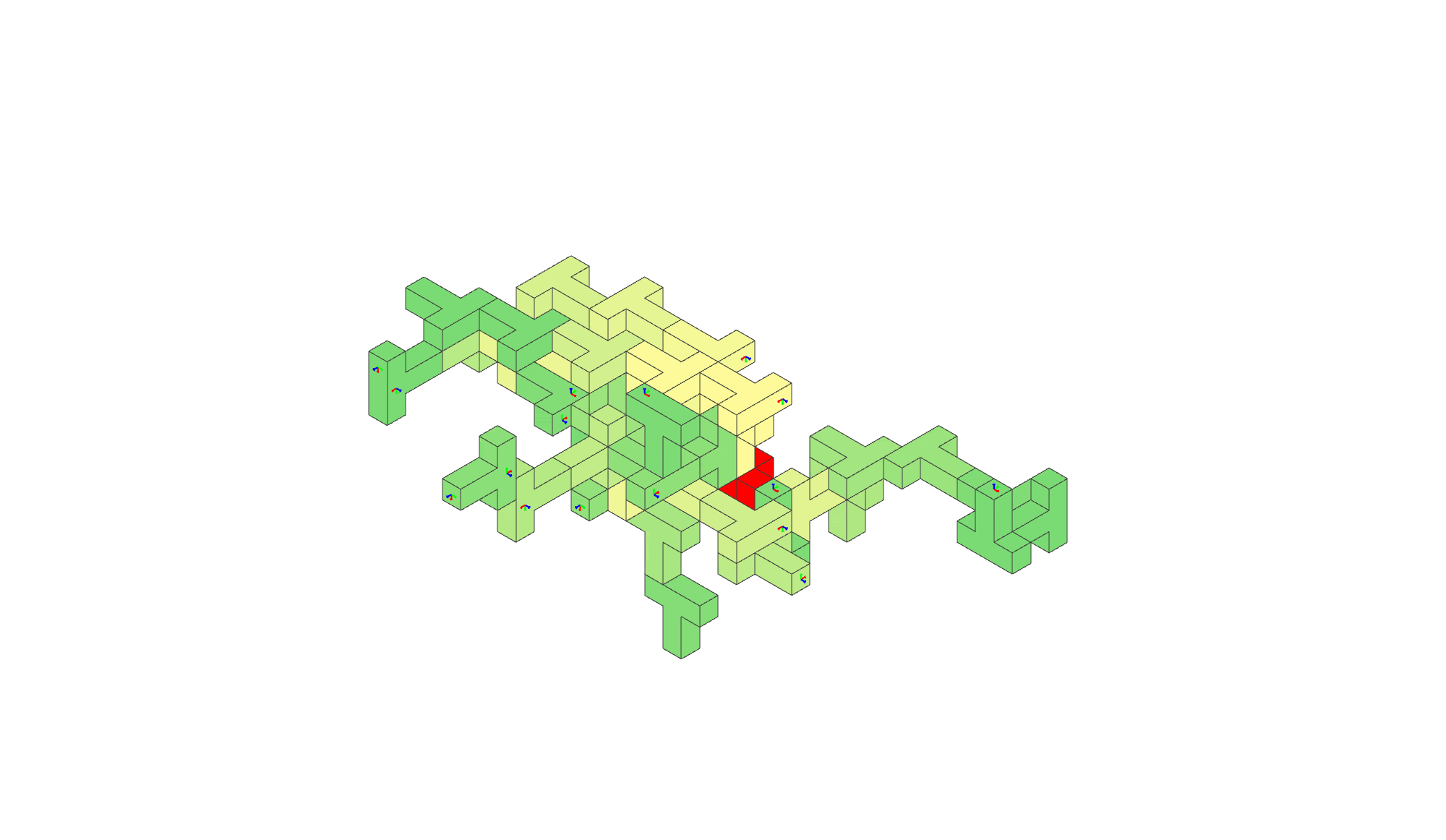

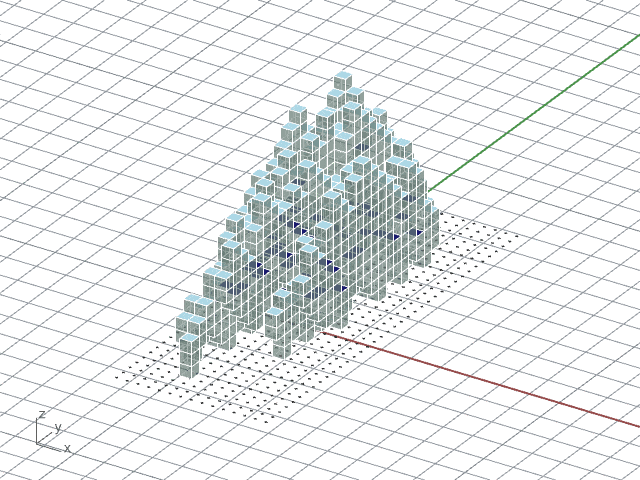

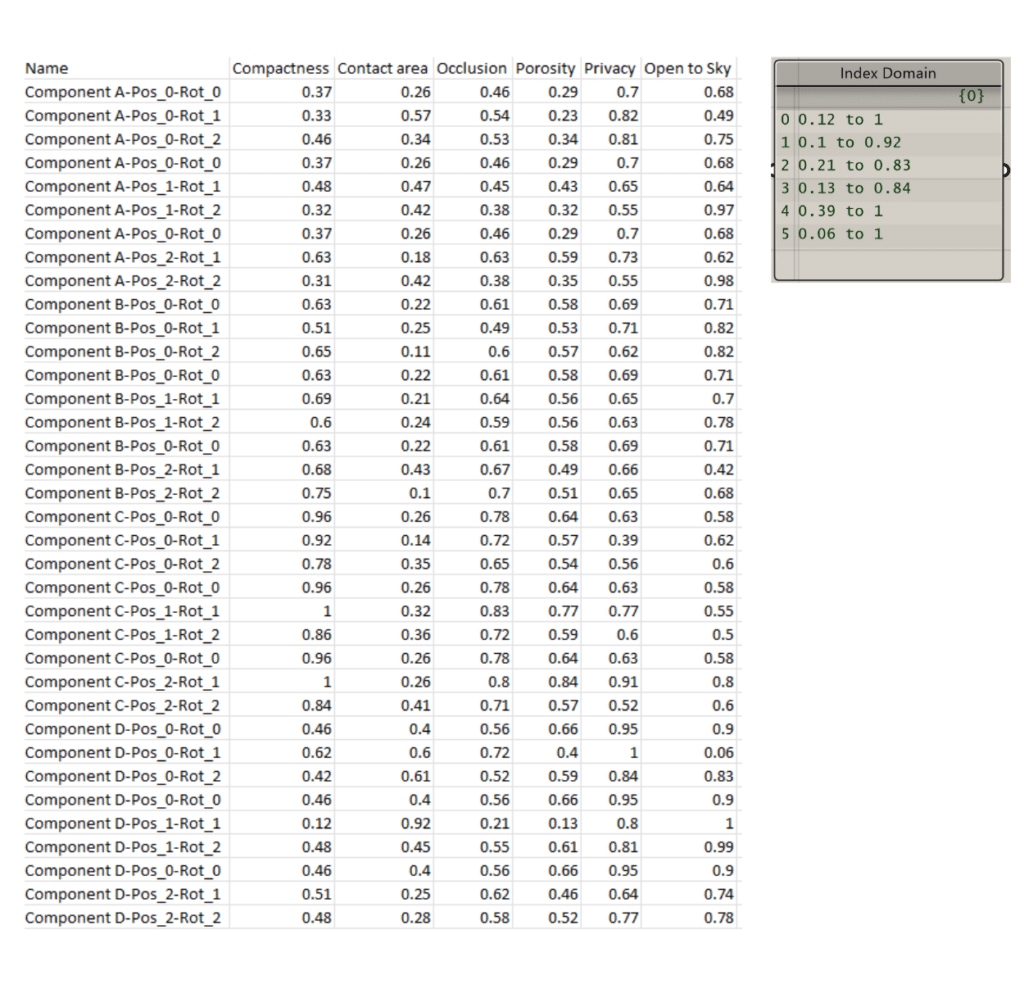

Assemblages comparison – Custom Method (150 iterations)

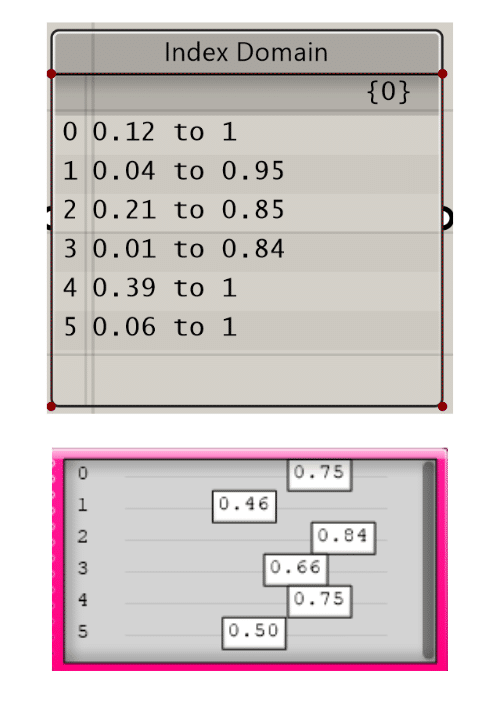

Remap to 0 to 1

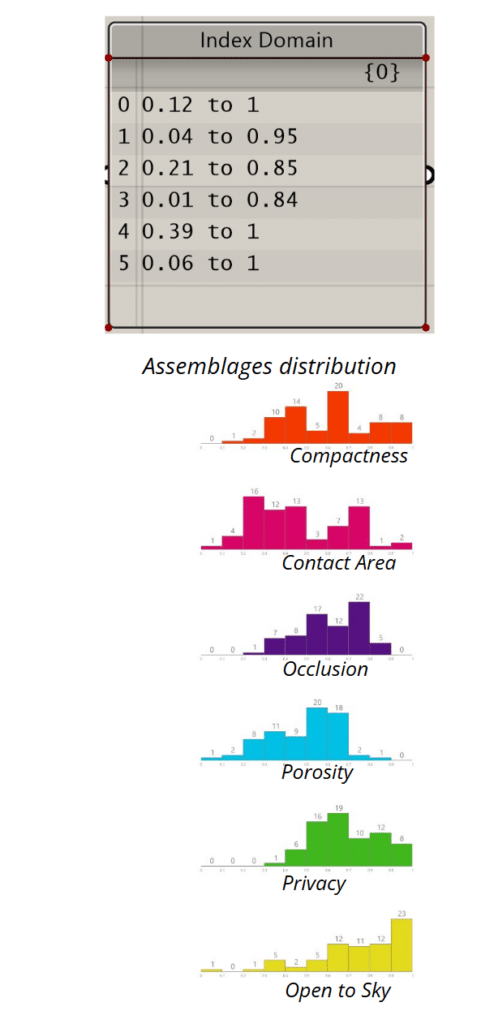

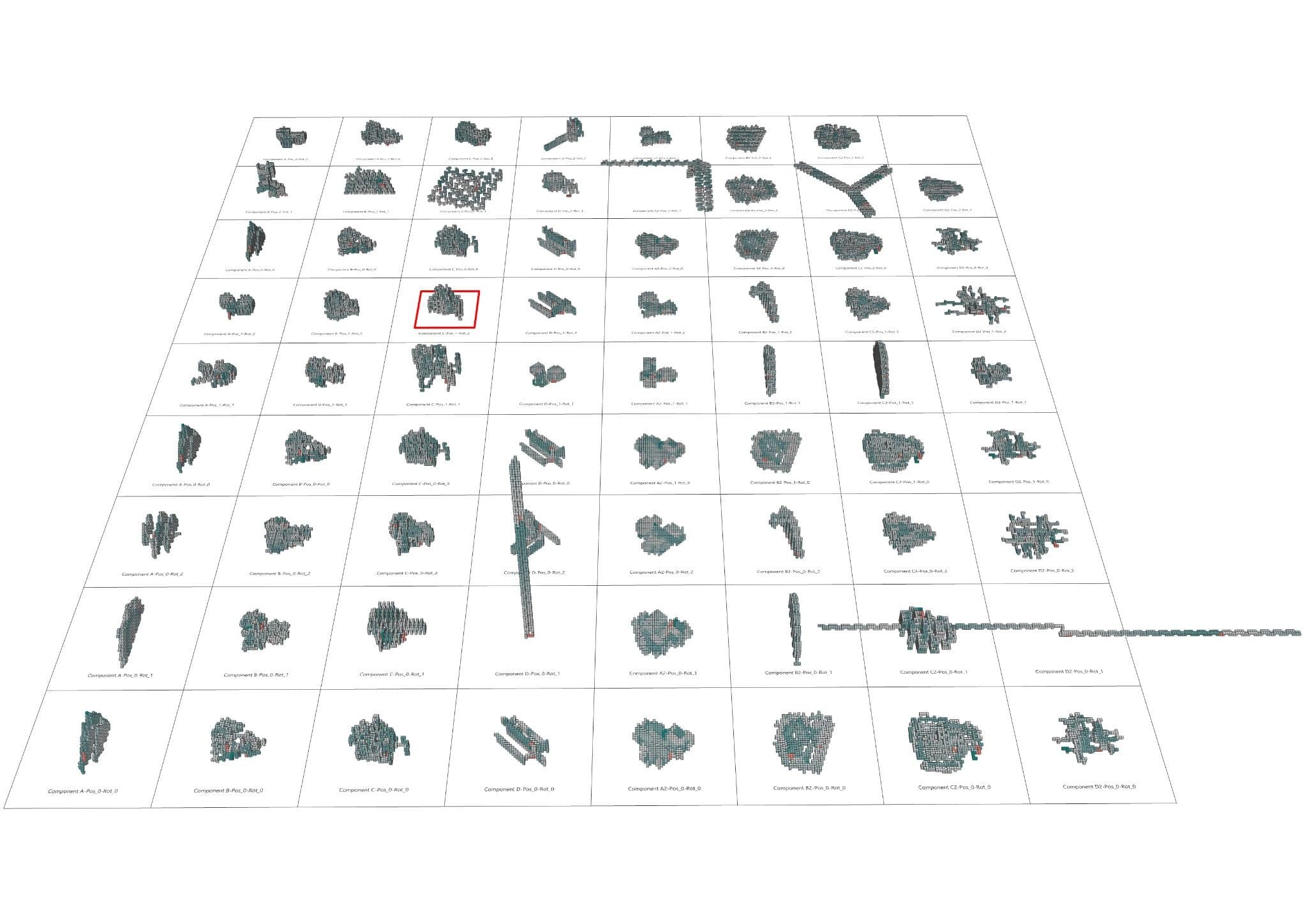

Assemblage Selection

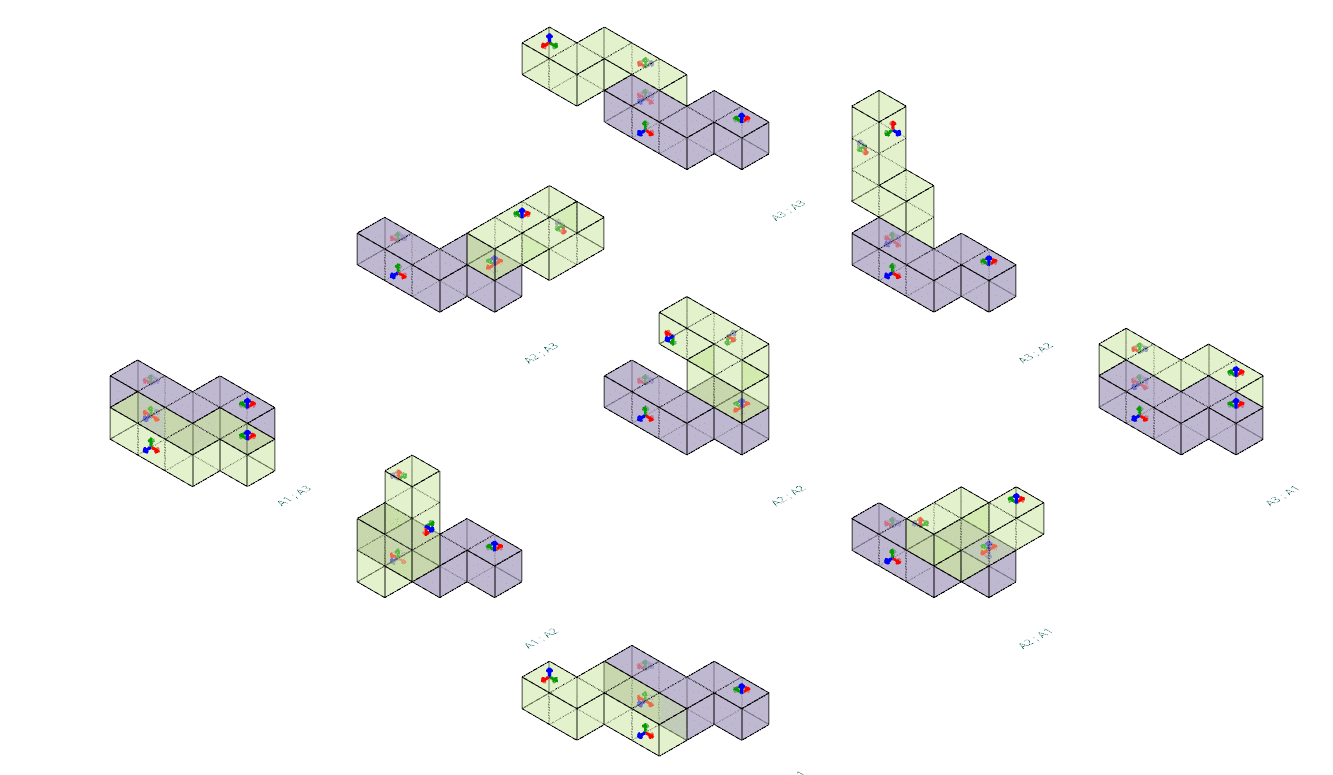

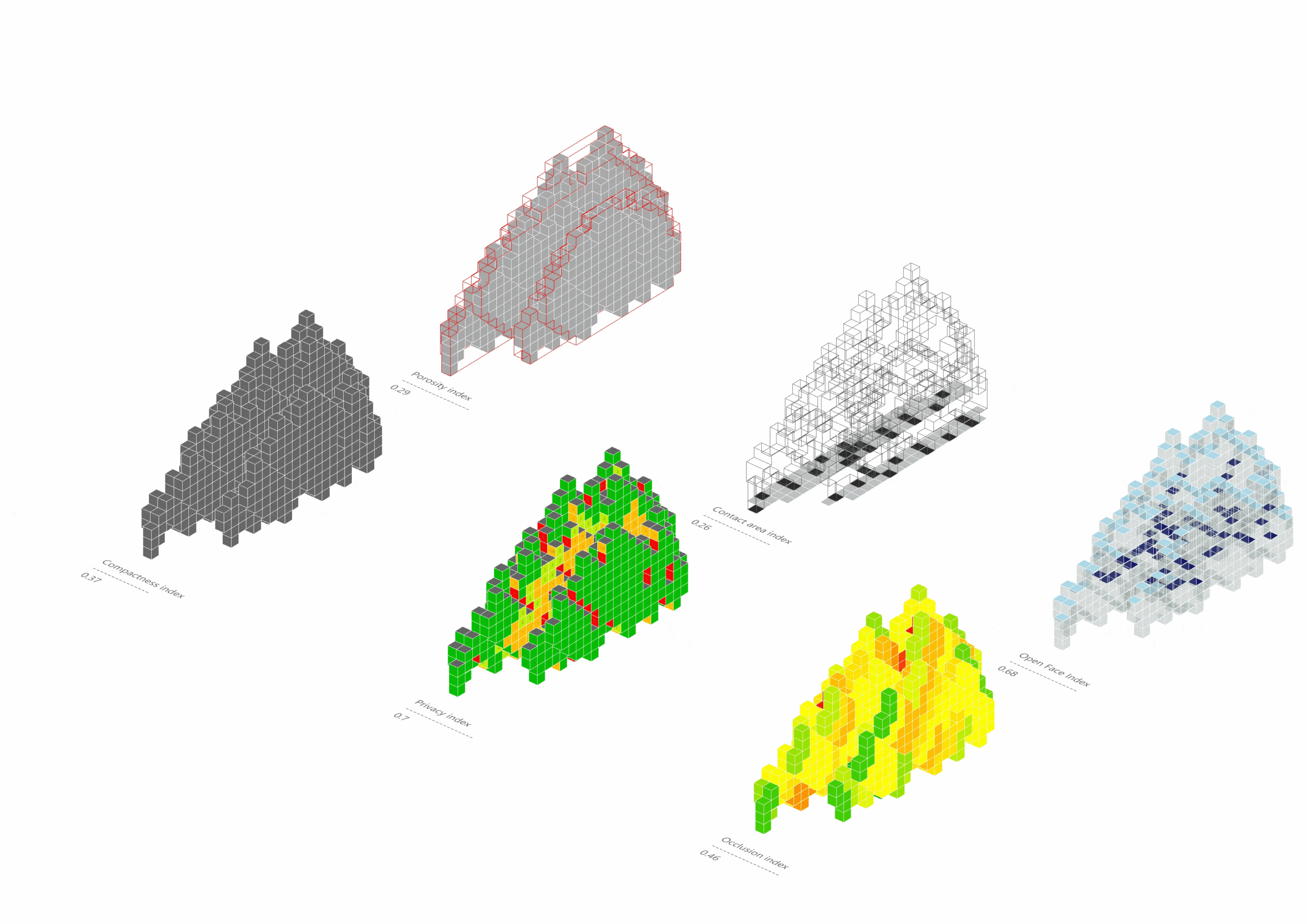

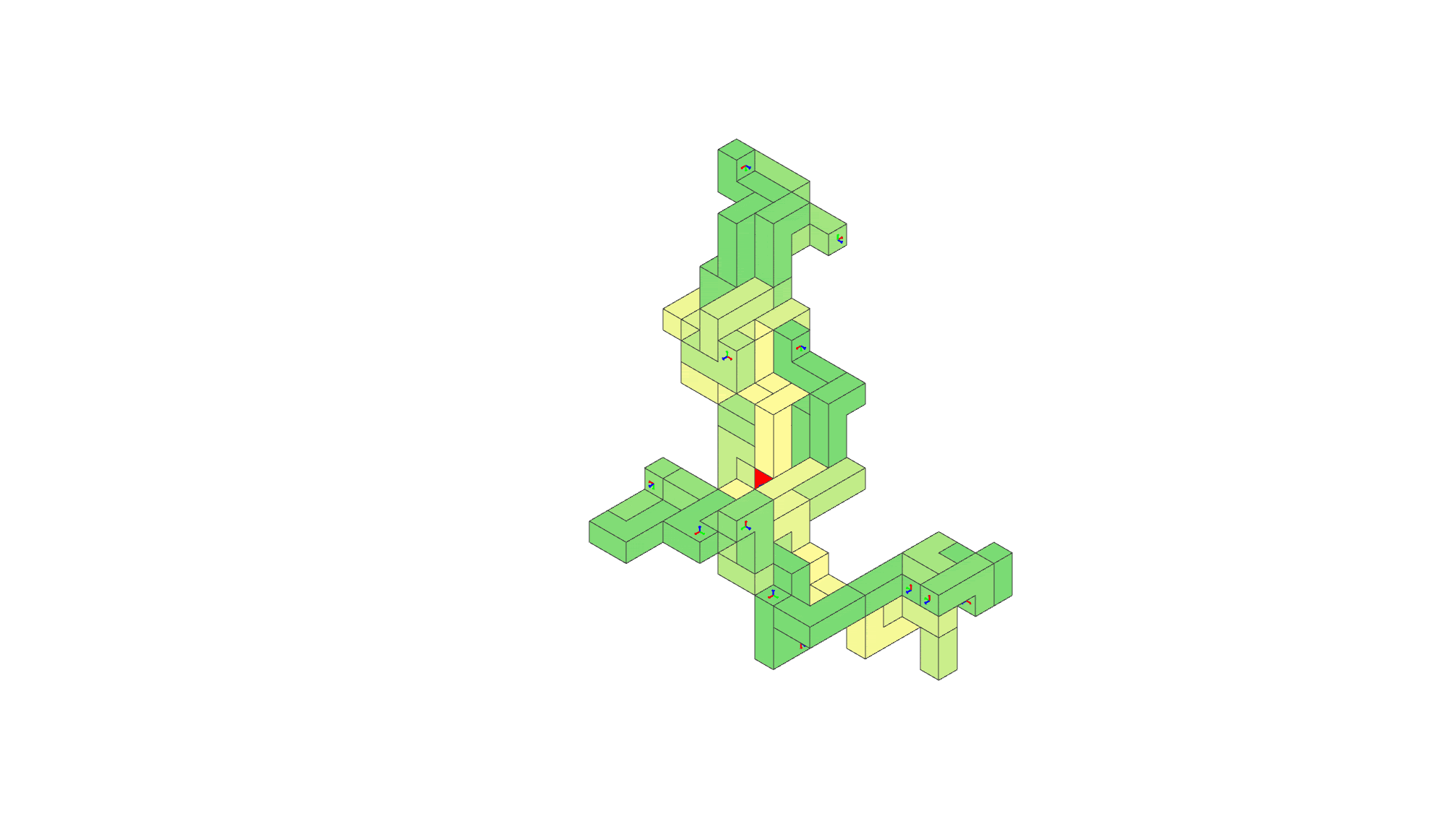

Shortlisted Assemblage

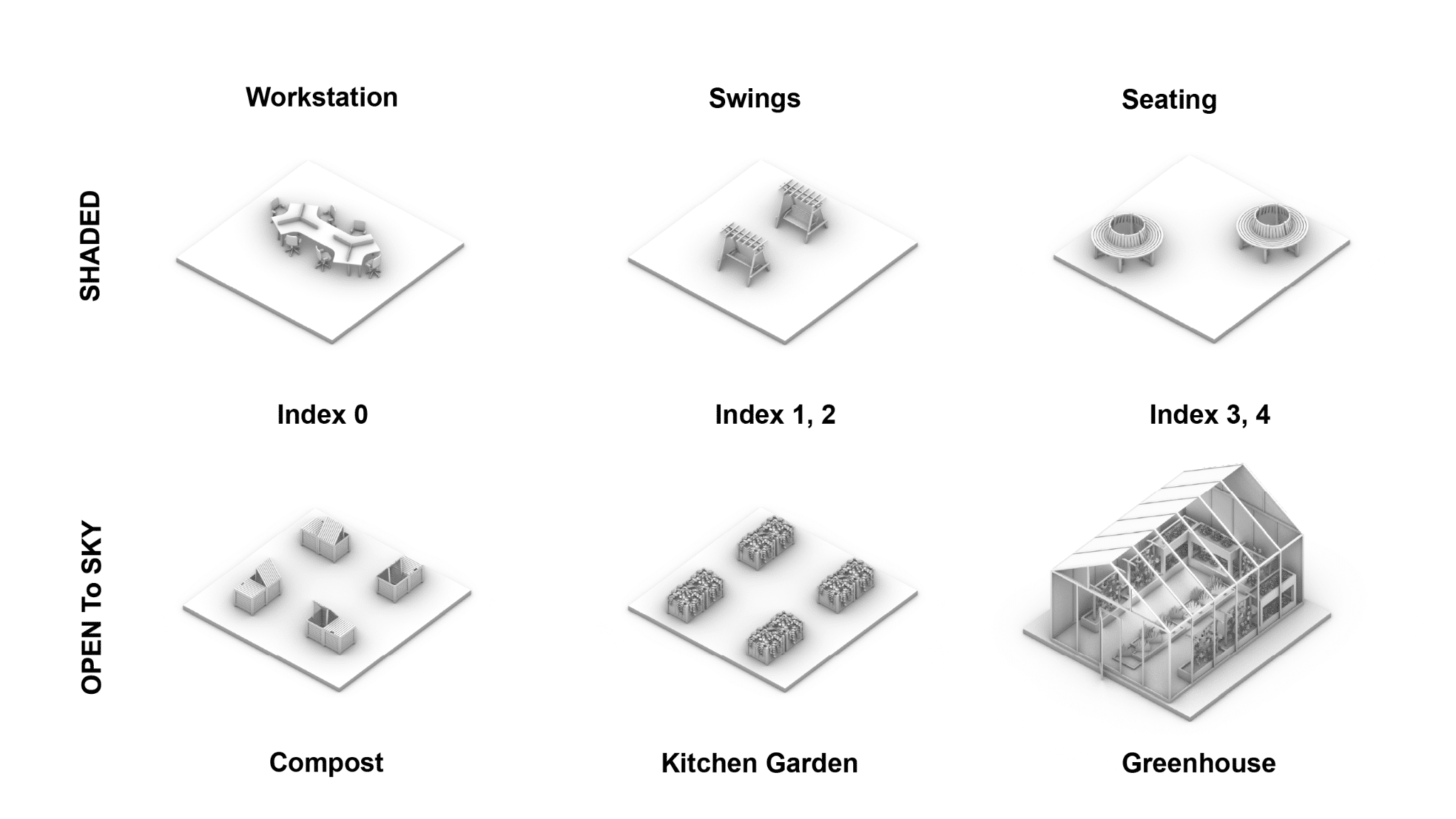

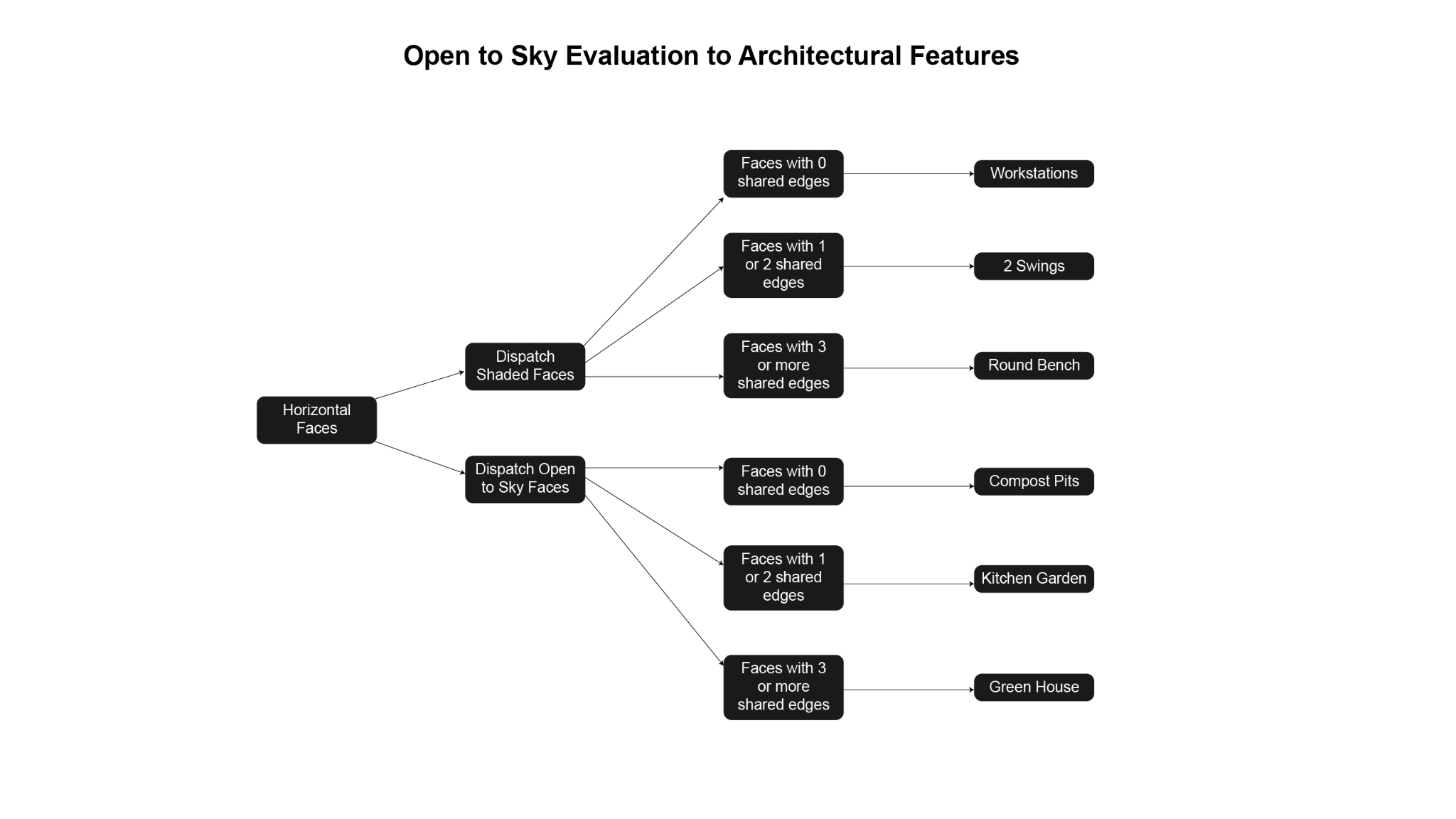

Open to Sky Index to Architectural Elements
