Fifth facade Pavilion has been developed as a competition design proposal to be built in Valldaura camp using 3d printed earth to print an arched structure that would require extreme cantilevering of layers. The pavilion was a result of multiple iterations considering the design criteria like Printing tool path length , The WASP crane printer dimensions, complexity of printing and structural stability. Inorder to Achieve the arch layers An eccentric scaffolding that’s actively bended has been utilized, considering the printing toolpath collisions and production complexities

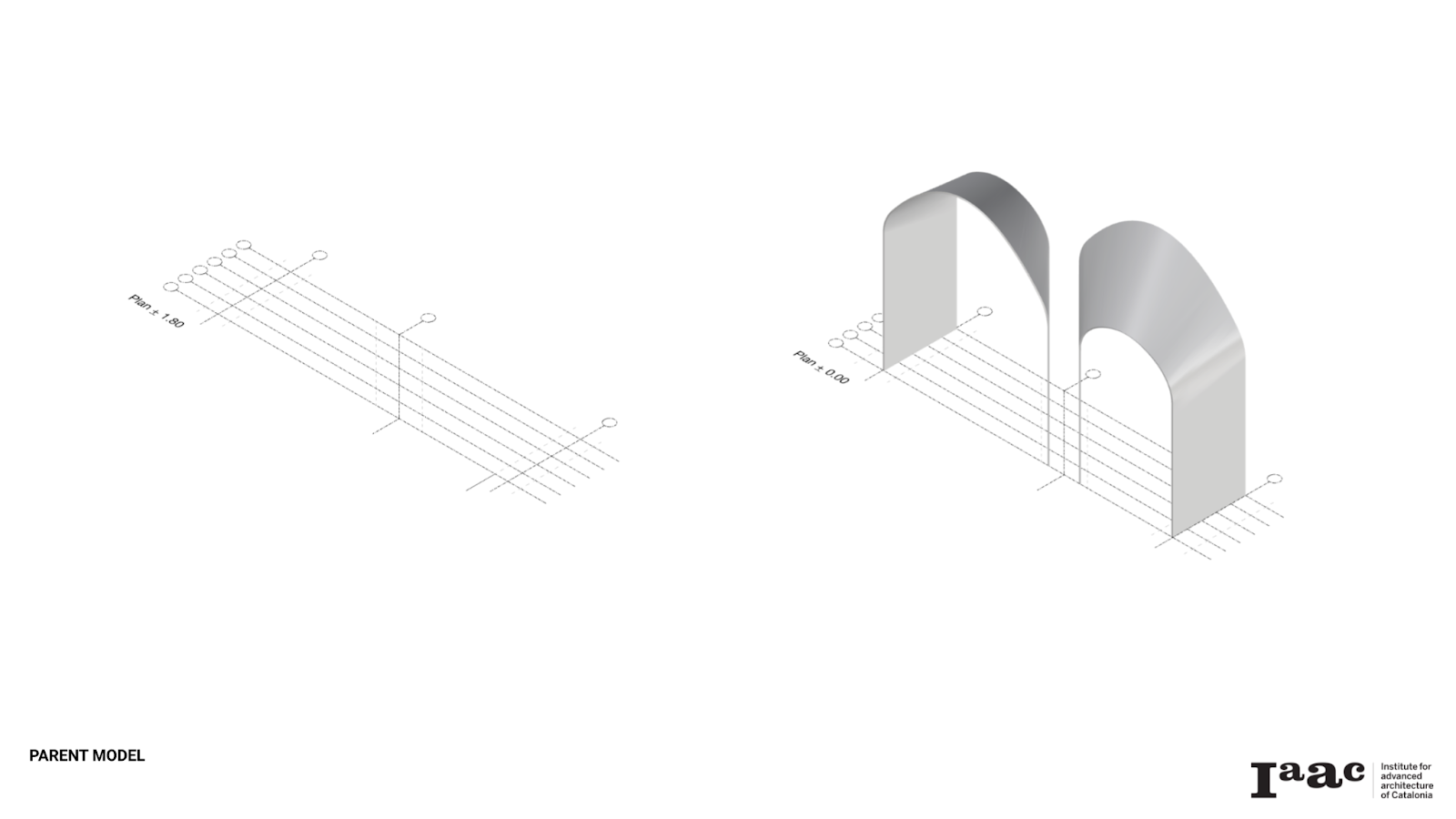

Base Geometry

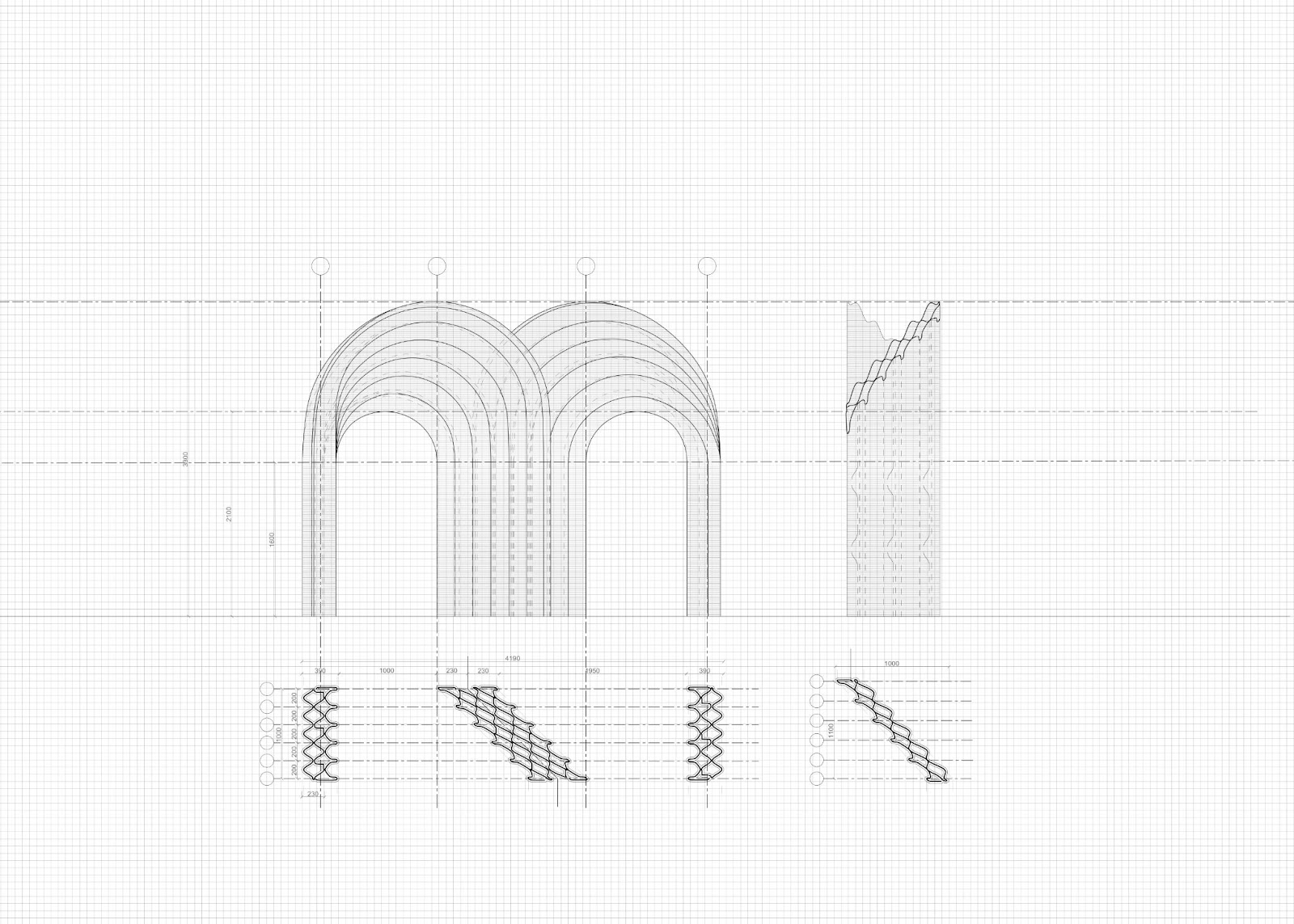

Technical Details

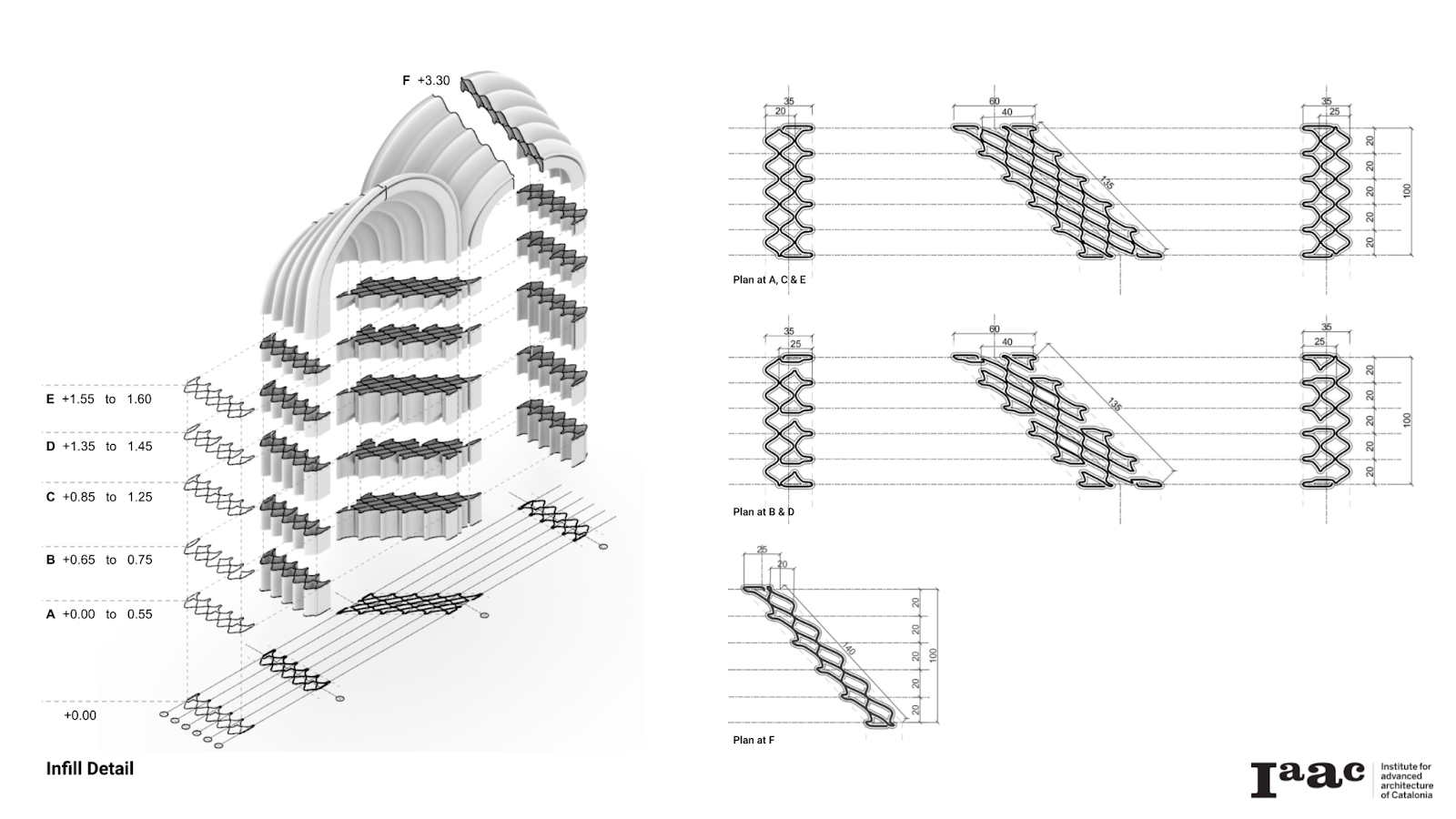

Infill Details & Distribution

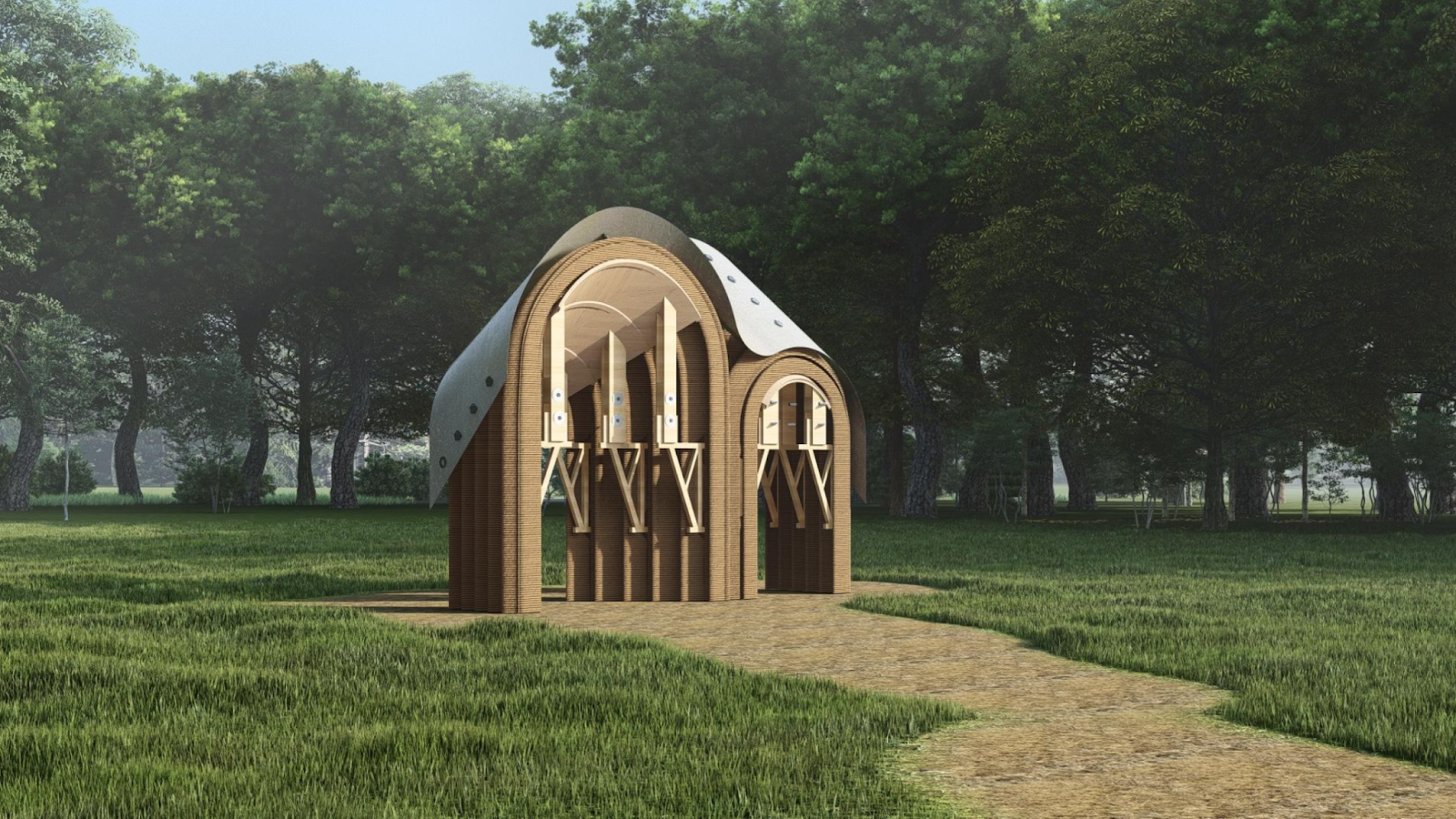

Design visualisation with Scaffoldings and Roof system

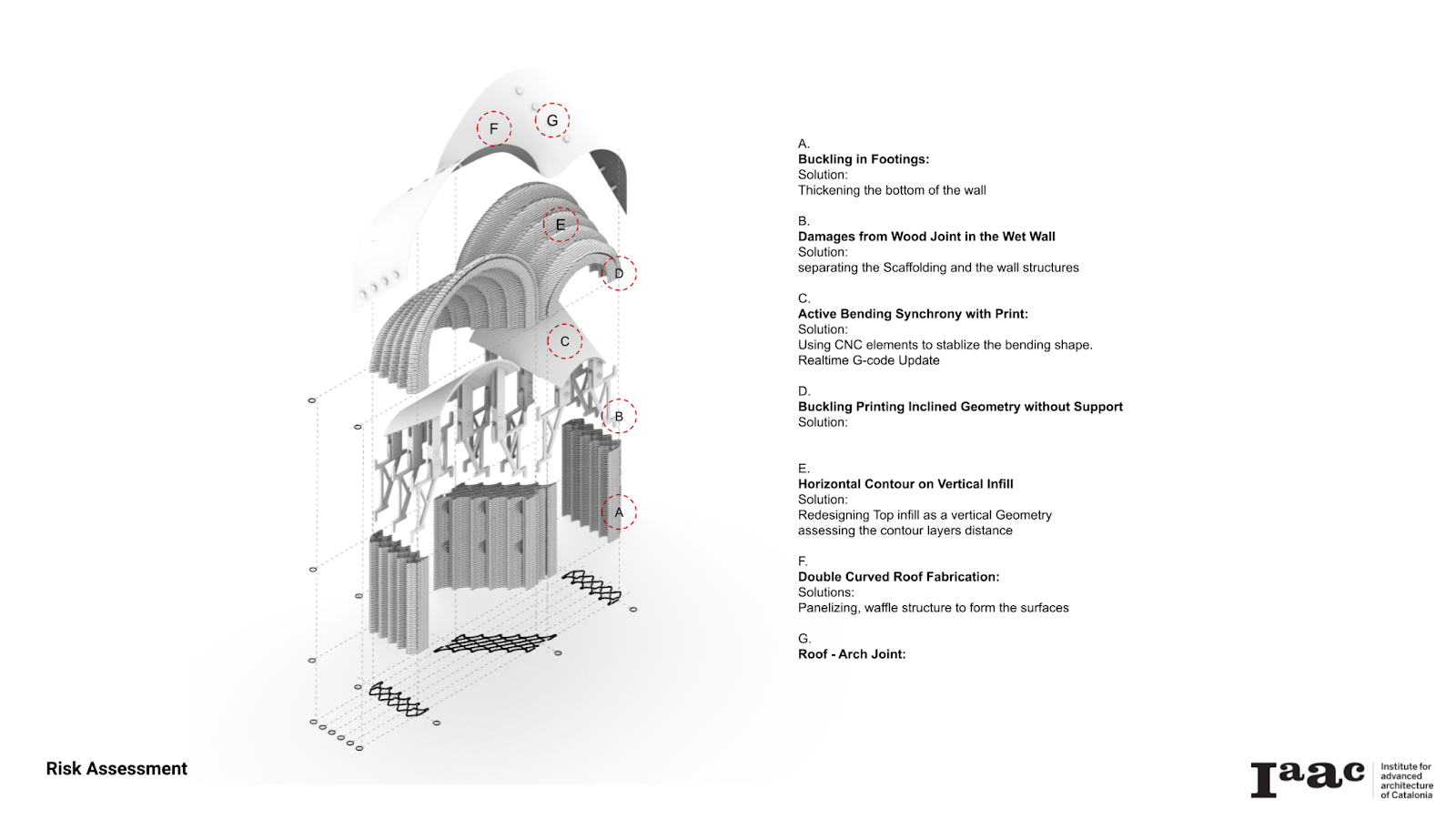

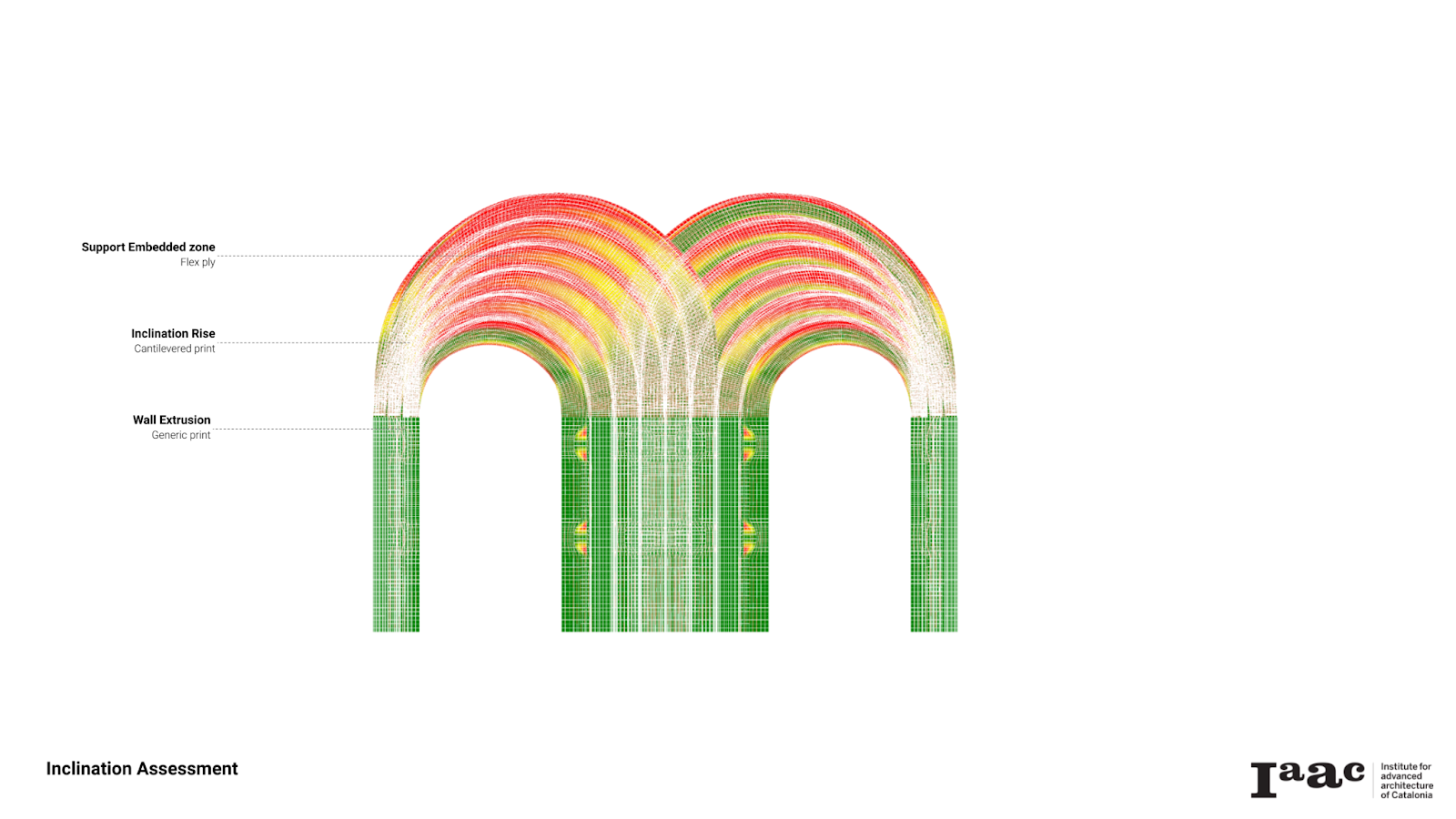

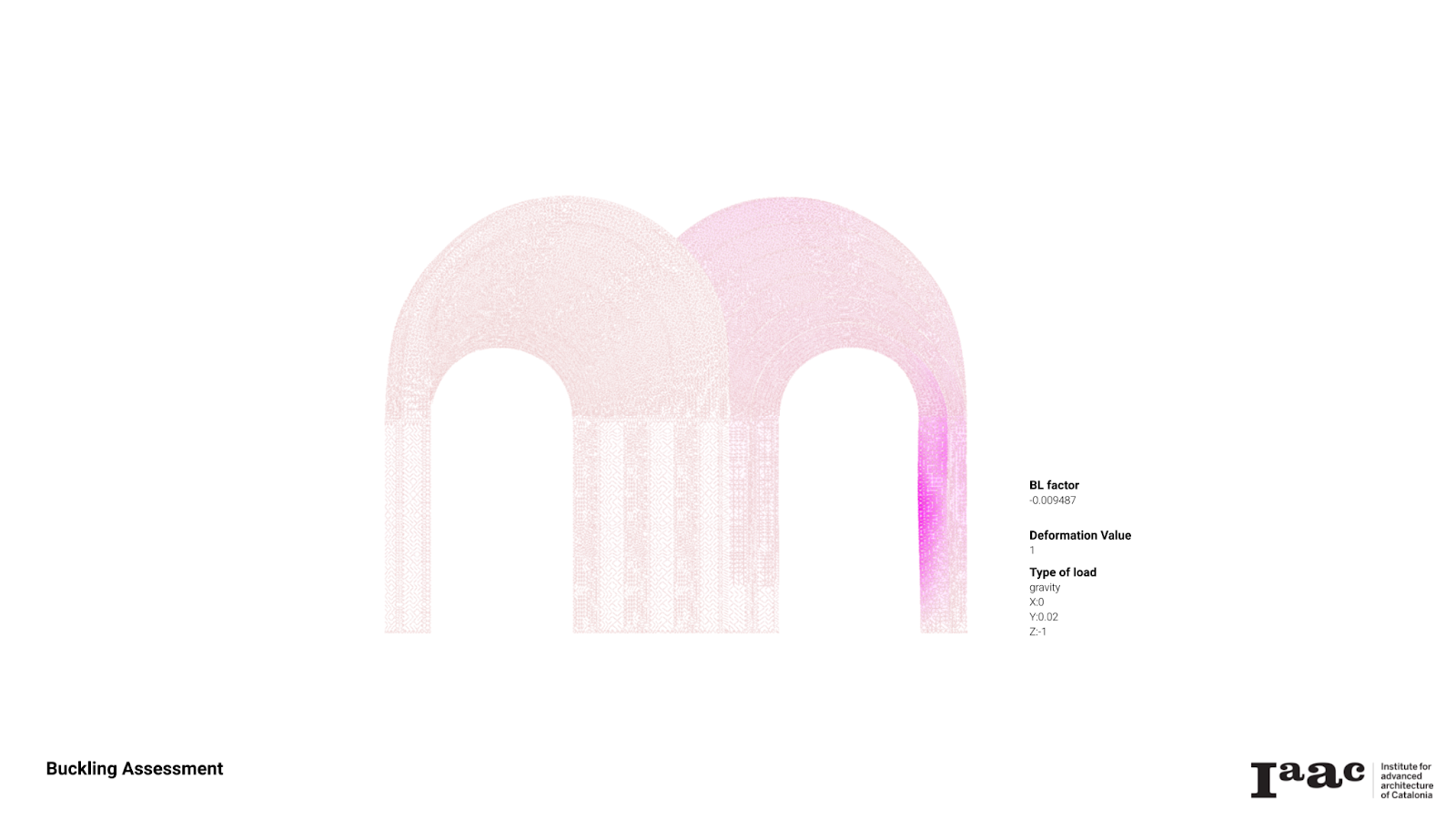

Risk Assessment

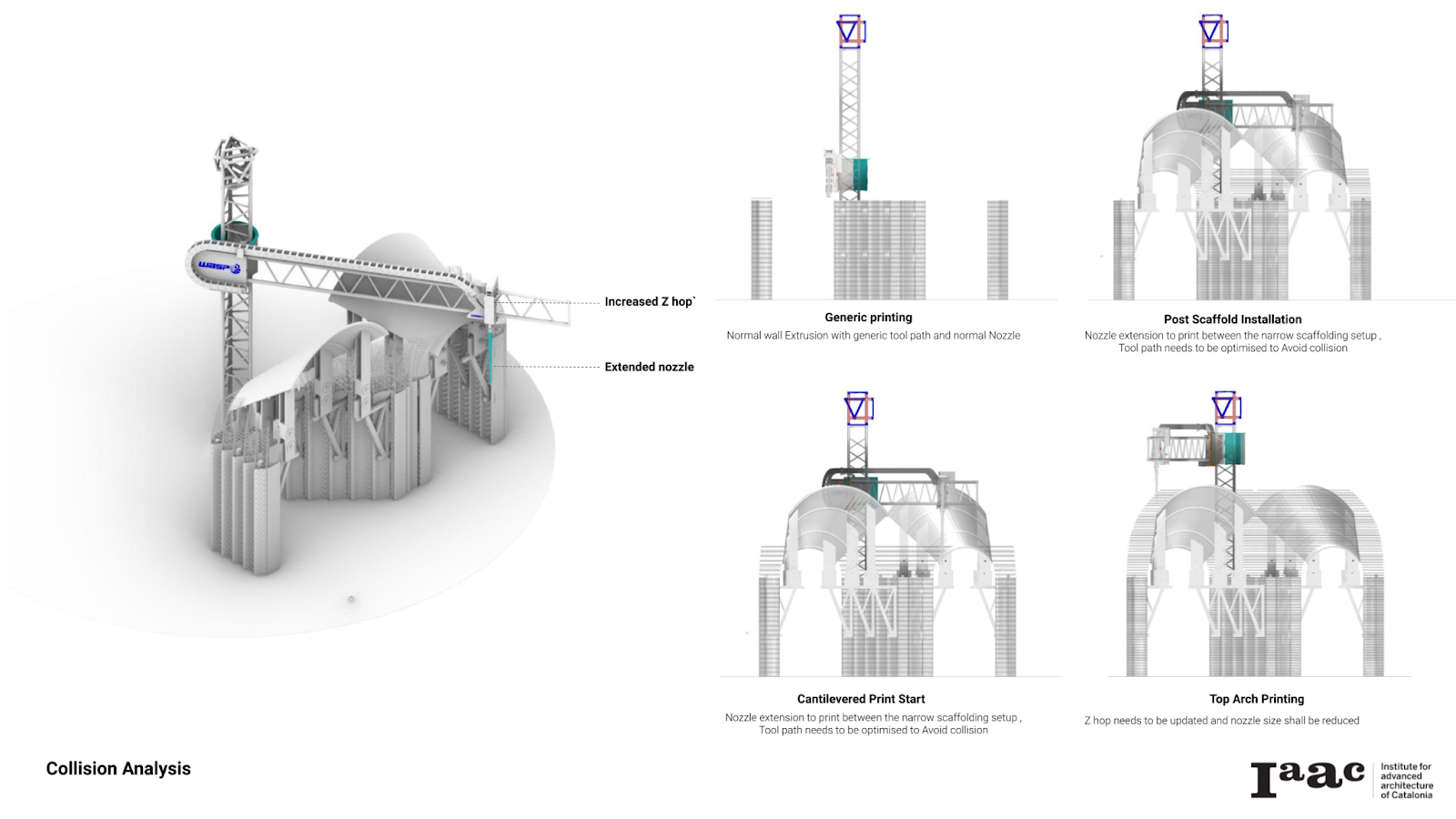

Strategies for Printing with Scaffolding system

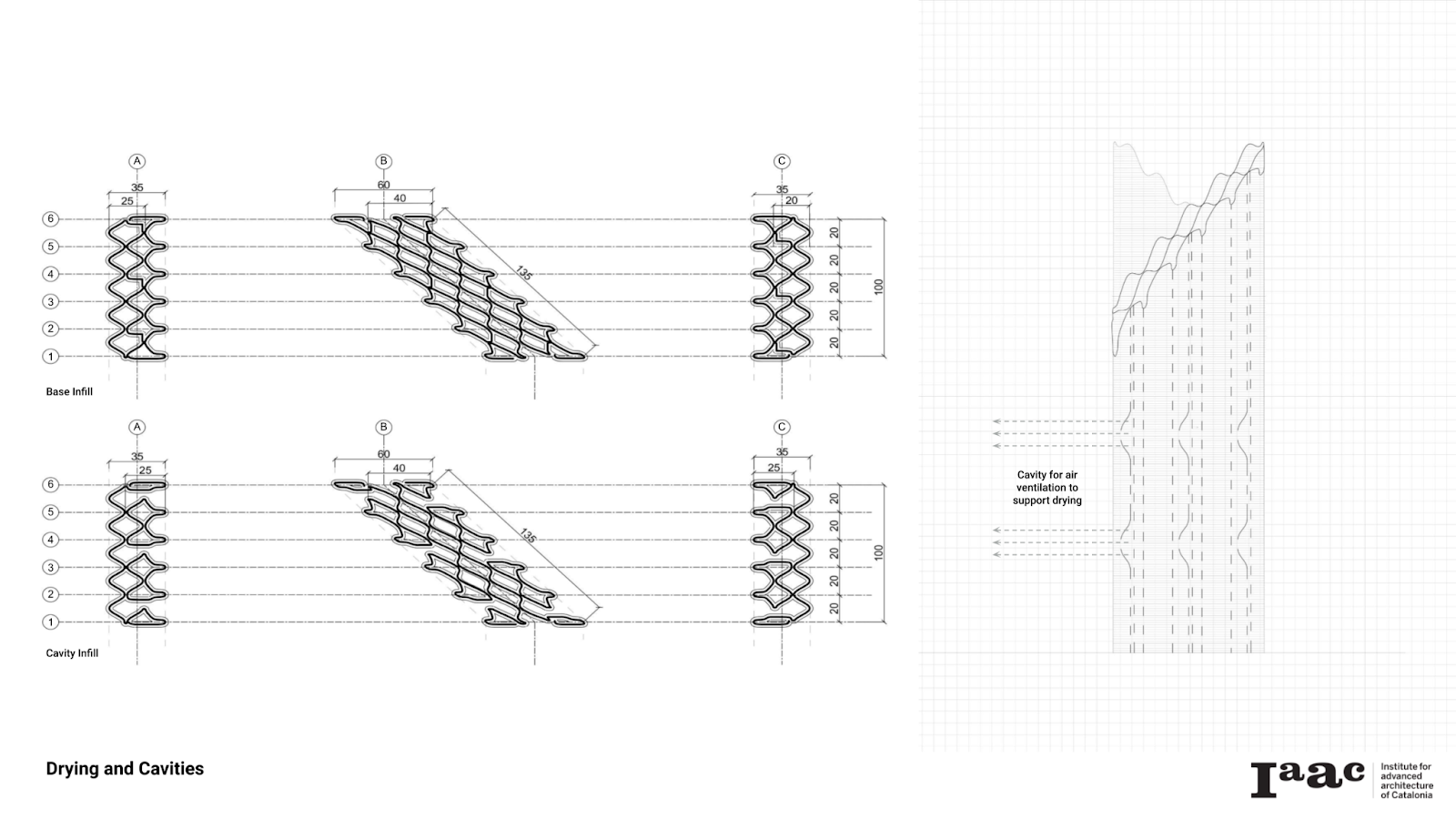

Drying and Cavity

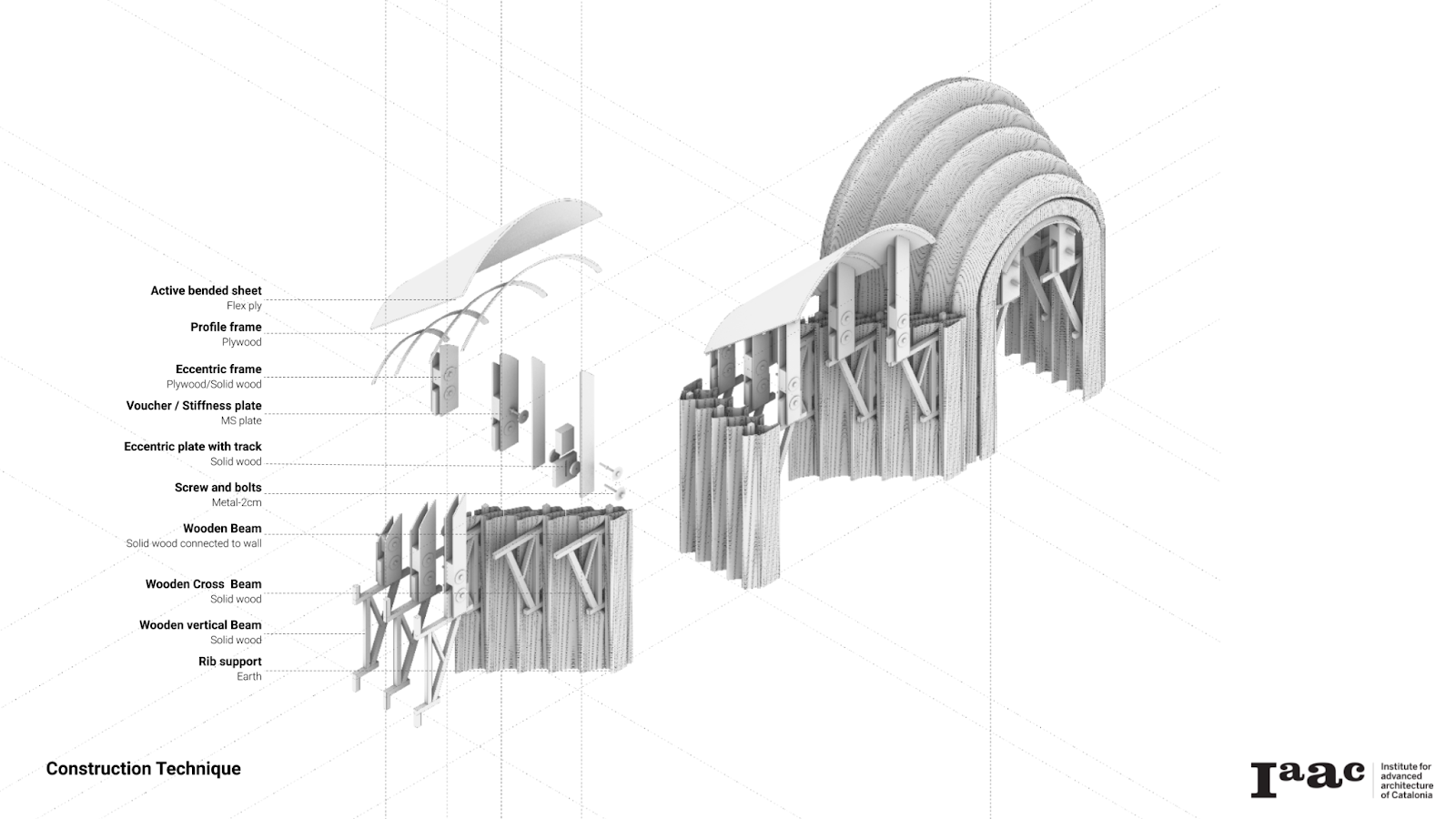

Construction Technique

Roofing system
